Engine Front Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the engine front cover as shown in the figure.
CAUTION:
- Install the engine front cover within 10 min of applying the silicone sealant.
- Silicone sealant is not needed in the area indicated by C as shown in the figure as it is a seal.
Thickness

A: 2.0-3.0 mm {0.079-0.118 in}

B: 1.5-2.5 mm {0.059-0.098 in}

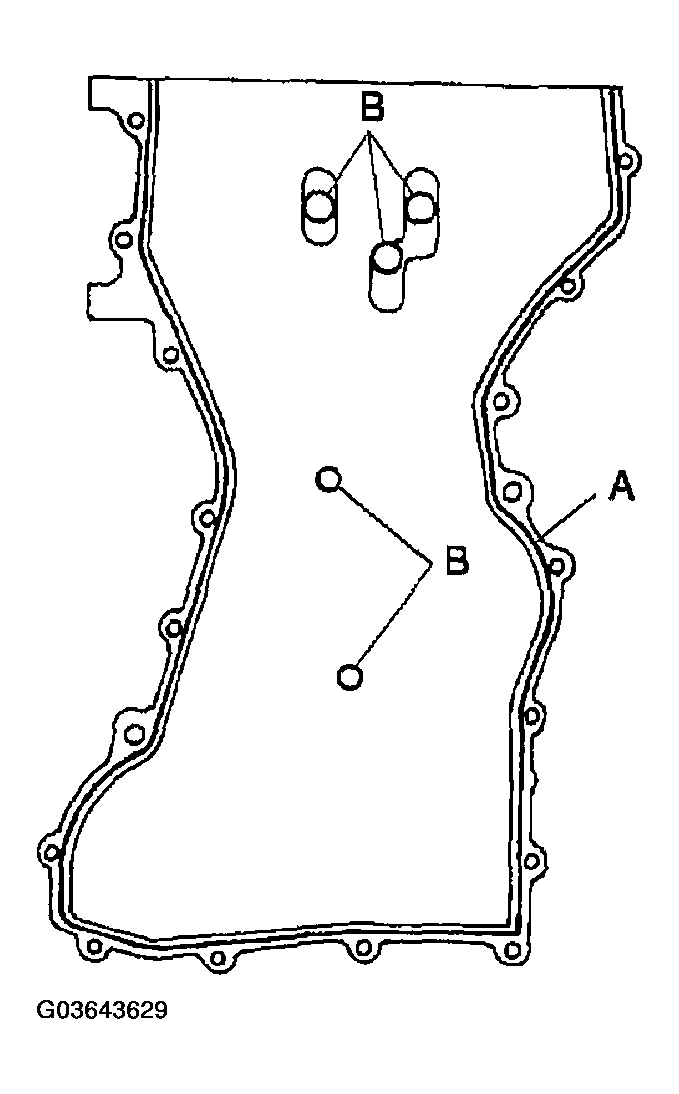

Fig 1: Applying Silicone Sealant To Engine Front Cover
Courtesy of MAZDA MOTORS CORP.

Install the engine front cover bolts in the order as shown in the figure.

ENGINE FRONT COVER BOLTS TIGHTENING TORQUE

Bolt No.	Tightening torque
1-18	8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}
19-22	40-55 N.m {4.1-5.6 kgf.m, 29.7-40.5 ft.lbf}

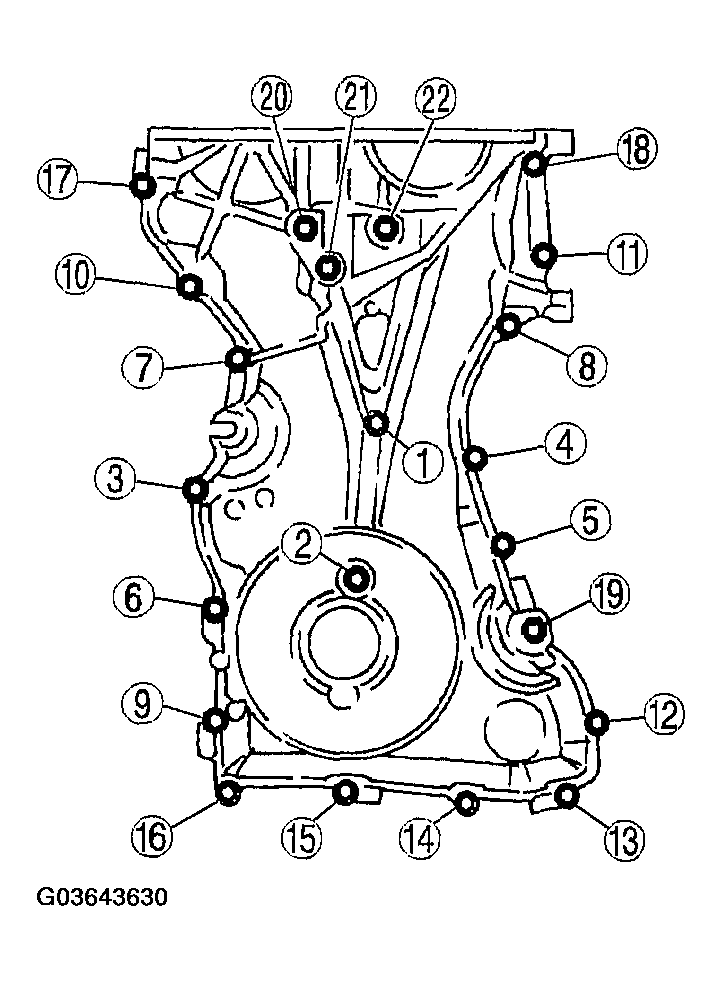

Fig 2: Engine Front Cover Bolt Installation Sequence
