Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown in the figure.
CAUTION:
- Install the cylinder head cover within 10 min of applying the silicone sealant.
Thickness

4.0-6.0 mm {0.16-0.23 in}

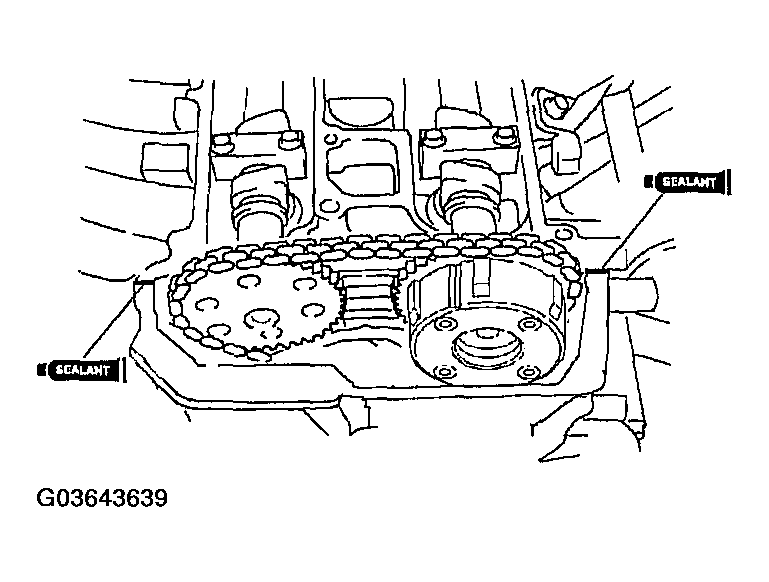

Fig 1: Applying Silicone Sealant To Mating Faces
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown in the figure.
Tightening torque

8.0-10.5 N.m {81.6-107.1 kgf.cm, 70.9-92.9 in.lbf}

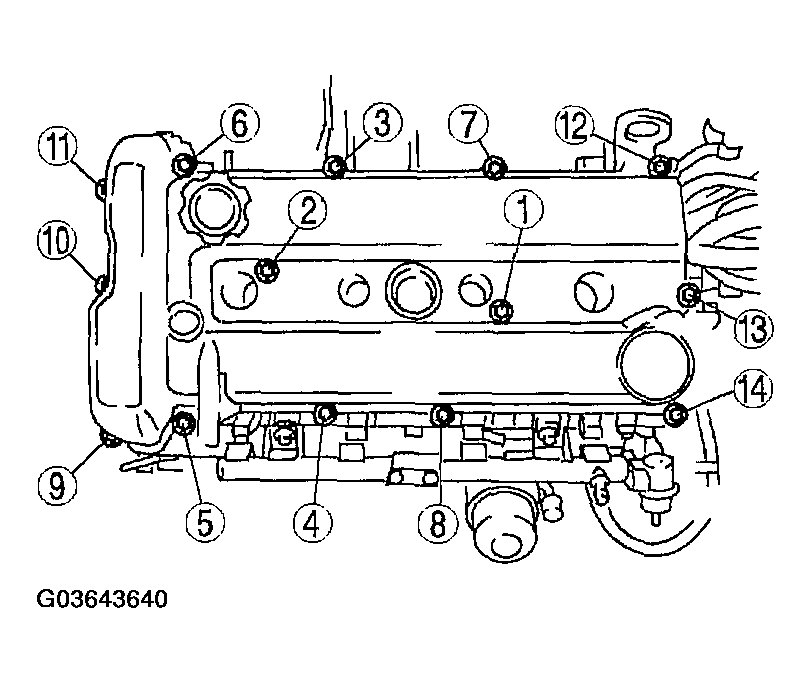

Fig 2: Cylinder Head Cover Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
