Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder block lower blind plug.
  2. Install the SST  .
  3. Rotate the crankshaft clockwise until the crankshaft is in the No. 1 cylinder TDC position (until the balance weight is contacting to the SST  ).

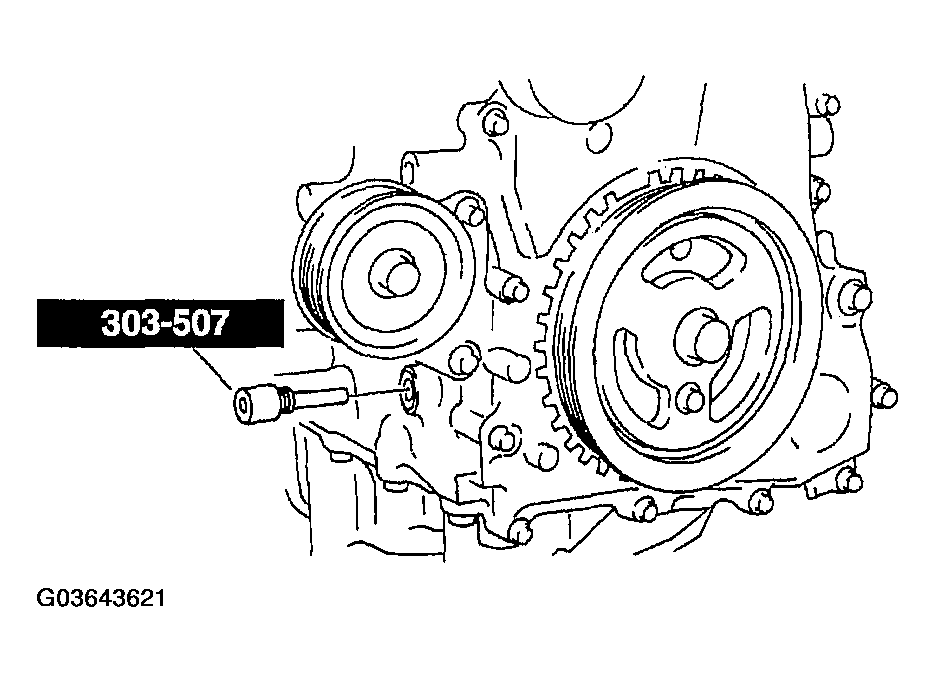

    Fig 1: Installing SST
    G03643621Courtesy of MAZDA MOTORS CORP.
  4. Hold the crankshaft pulley using the SSTs.

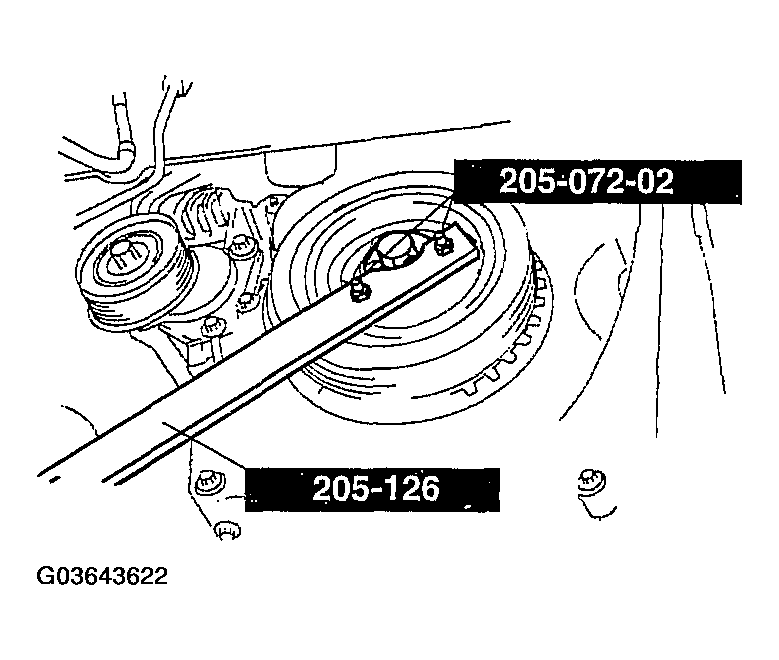

    Fig 2: Holding Crankshaft Pulley Using SST
    G03643622Courtesy of MAZDA MOTORS CORP.
