Plug Hole Plate Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the plug hole plate.
NOTE:

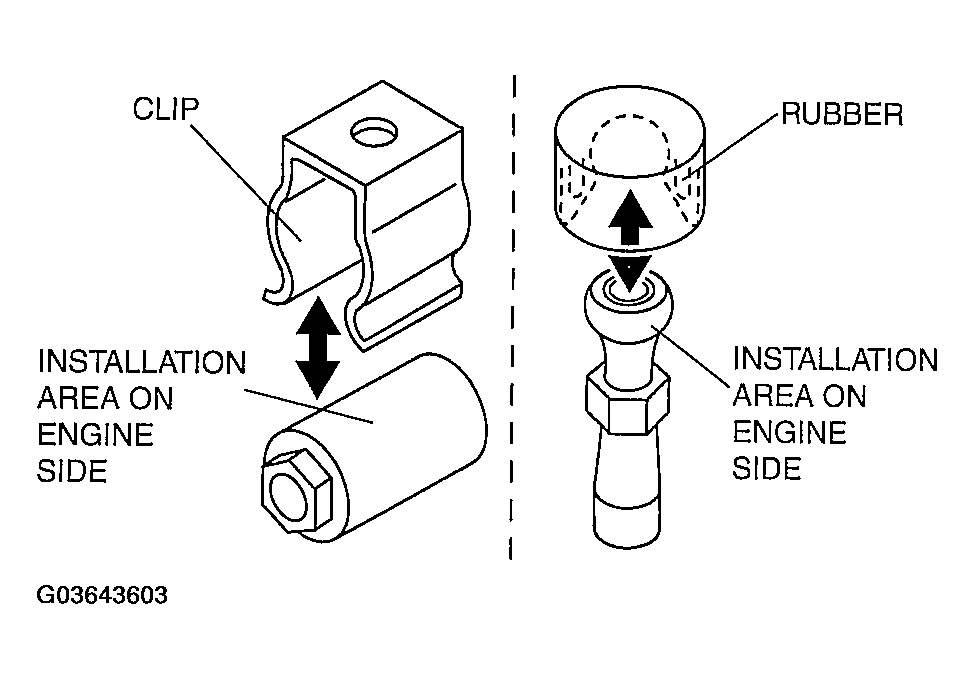

- Lift off and remove the plug hole plate from the installation areas (rubber and clips) as shown in the illustration.

  Fig 1: Identifying Plug Hole Plate Removing Rubber And Clips
  Courtesy of MAZDA MOTORS CORP.
Install the plug hole plate.

Fig 2: Installing Plug Hole Plate
Courtesy of MAZDA MOTORS CORP.
1. To position the plug hole plate, grasp rubber 1 and 2, as shown in the figure, with your hands and press them in.
2. Grasp rubber 3 with your hand and press it in.
3. Grasp clips 4 and 5 with your hands and press them in.

  Fig 3: Positioning Plug Hole Plate
  Courtesy of MAZDA MOTORS CORP.
