No. 4 Engine Mount Bracket and No. 4 Engine Mount Rubber Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Secure the engine and the transaxle using a hoist.

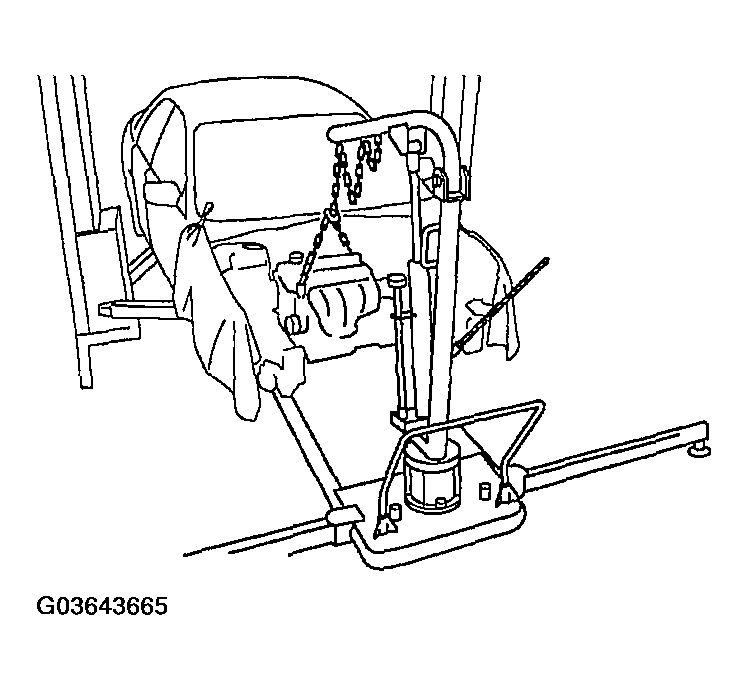

Fig 1: Securing Engine And Transaxle Using Hoist
Courtesy of MAZDA MOTORS CORP.
Remove the No. 4 engine mount bracket and engine mount rubber together as a unit.

Fig 2: Identifying No. 4 Engine Mount Bracket And Engine Mount Rubber
Courtesy of MAZDA MOTORS CORP.
