No. 1 Engine Mount Rubber Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove through bolt A on the No. 1 engine mount bracket side.

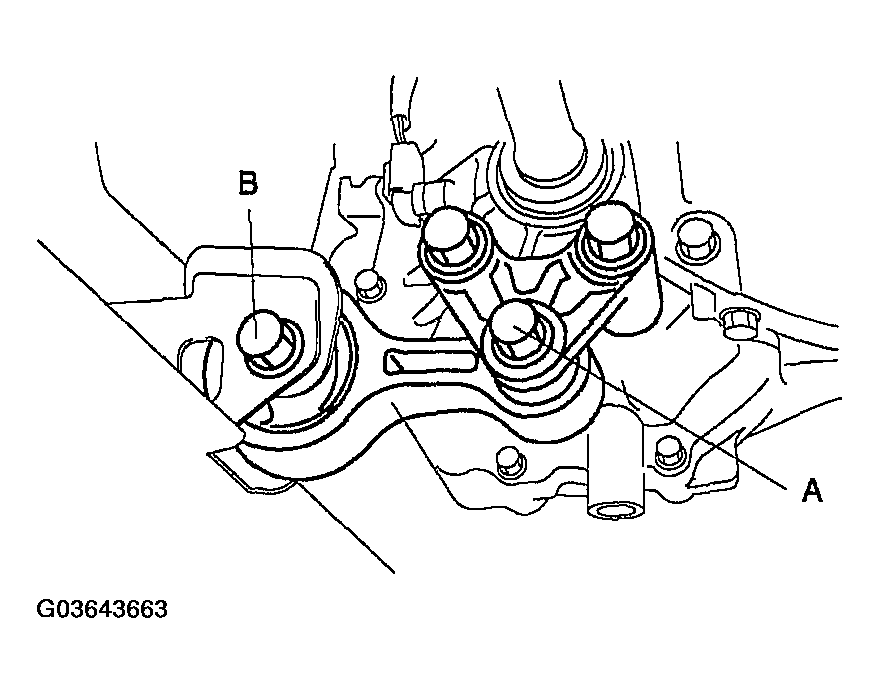

Fig 1: Identifying Engine Mount Bolts
Courtesy of MAZDA MOTORS CORP.
Loosen through bolt B on the crossmember side until approximately three pitches are showing.
NOTE:
- Do not remove the No. 1 engine mount rubber from the vehicle.

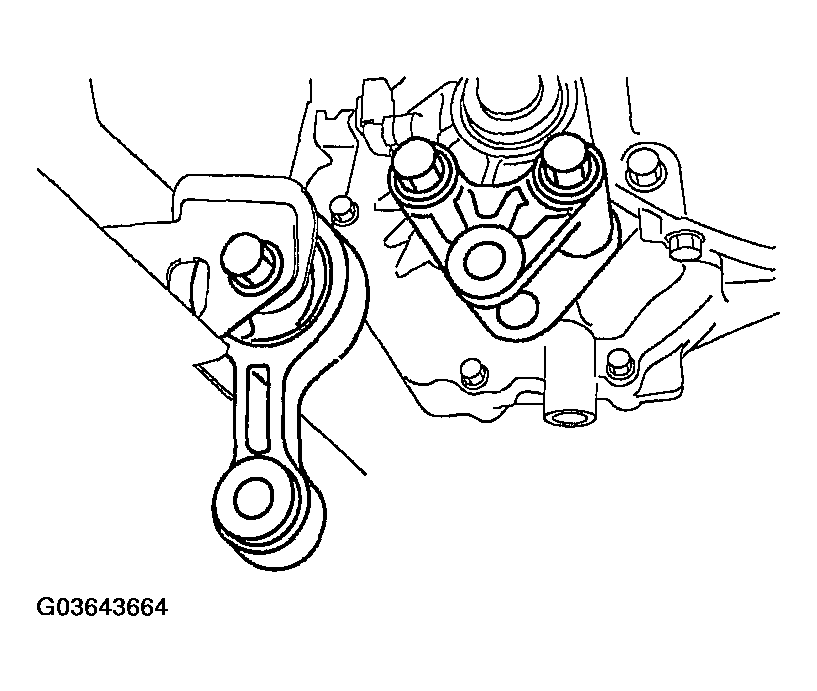

  Fig 2: Positioning No. 1 Engine Mount Rubber
  Courtesy of MAZDA MOTORS CORP.
