Cylinder Head Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in two or three steps in the order shown in the figure.

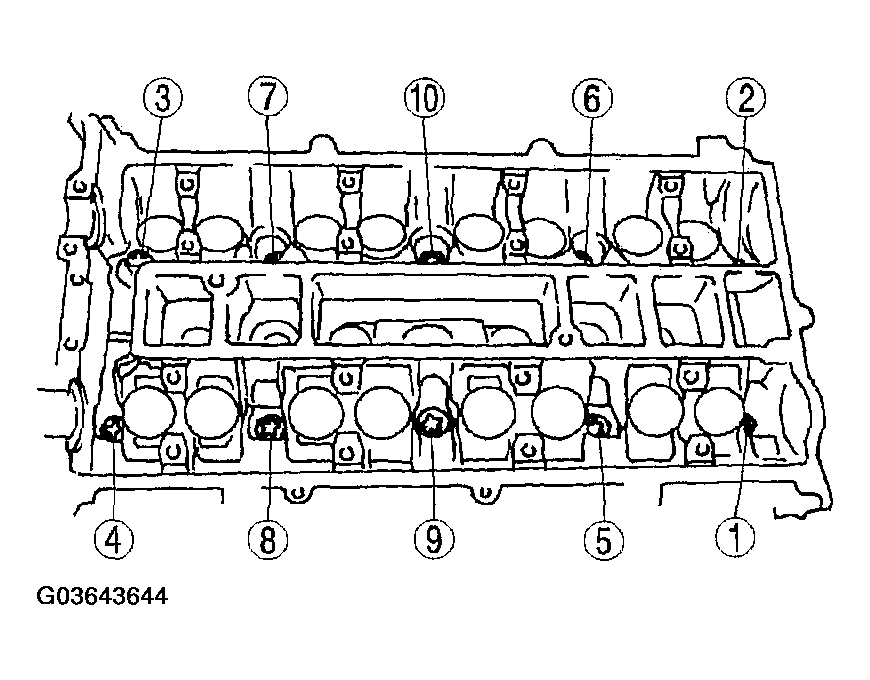

    Fig 1: Cylinder Head Bolt Removal Sequence
    G03643644Courtesy of MAZDA MOTORS CORP.
