PID/DATA Monitor and Record Procedure

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the center console.
  3. Access and monitor PIDs using the WDS or equivalent.

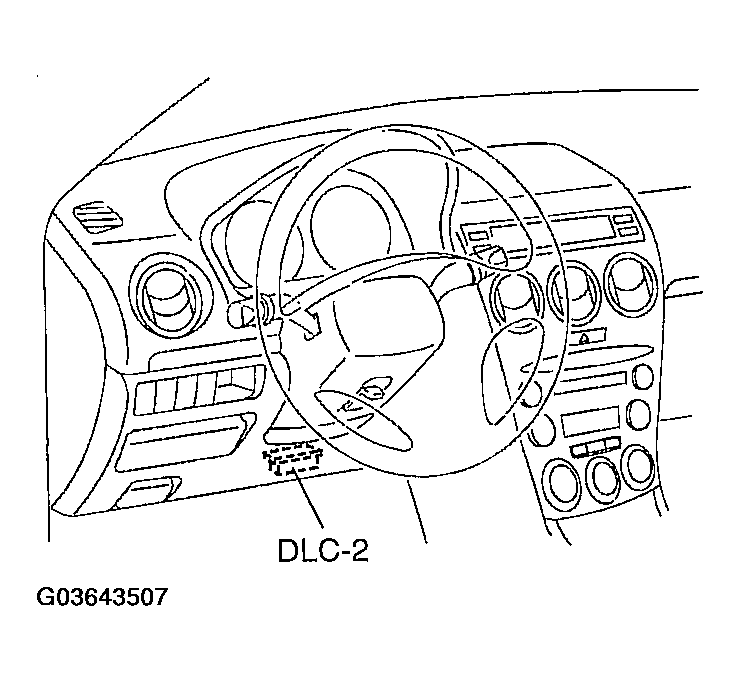

    Fig 1: Identifying DLC-2 (PID/Data Monitor And Record Procedure)
    G03643507Courtesy of MAZDA MOTORS CORP.
