Except for California Emission Regulation Applicable ATX Model

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

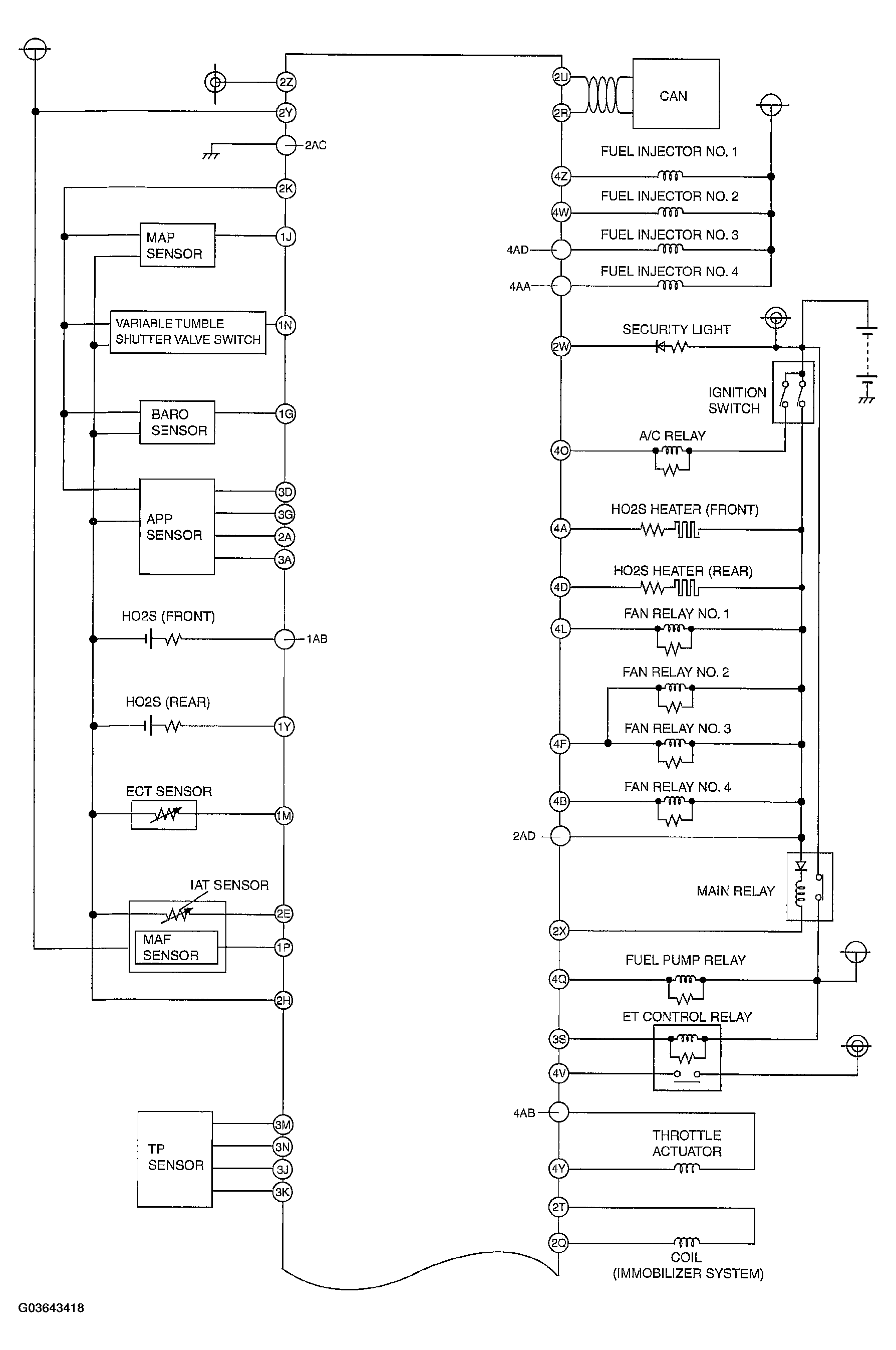

Fig 1: Control System Wiring Diagram [L3] Except For California Emission Regulation Applicable ATX Model (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

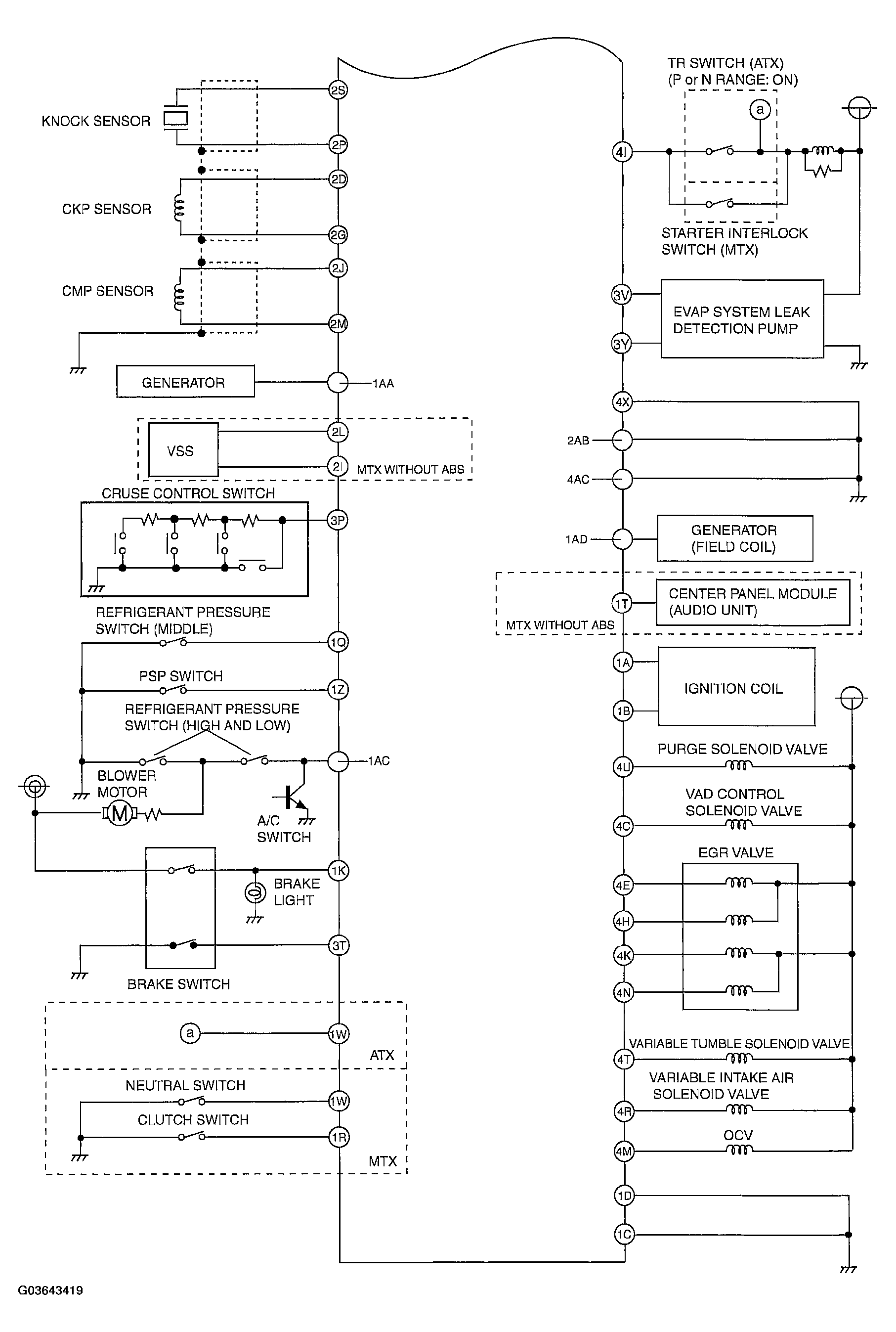

Fig 2: Control System Wiring Diagram [L3] Except For California Emission Regulation Applicable ATX Model (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
