Disconnecting connectors

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

When disconnecting connector, grasp the connectors, not the wires.

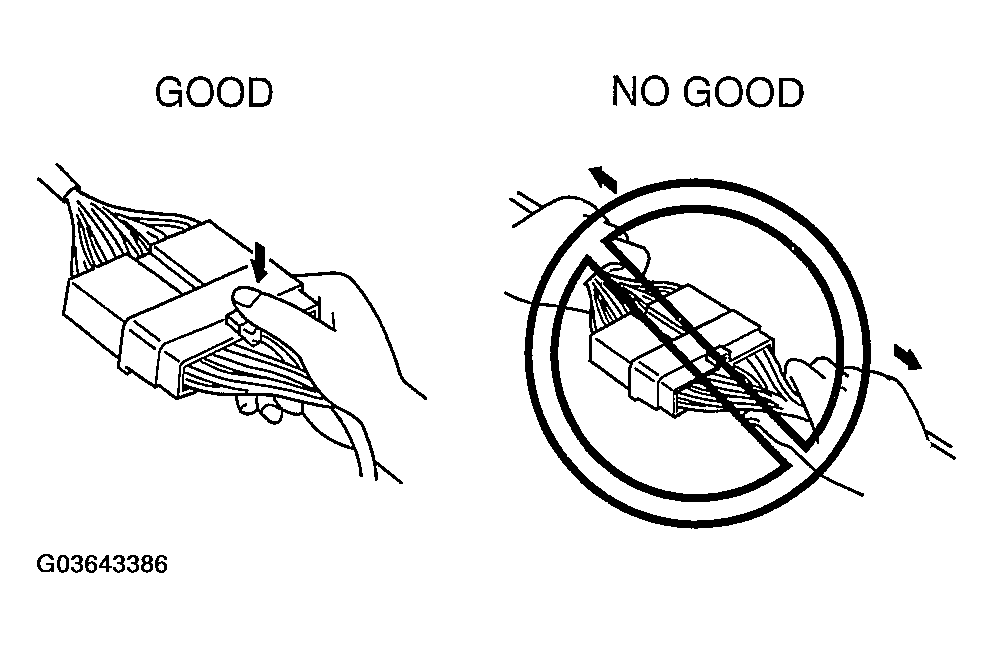

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.

Fig 2: Locating Lock Lever
Courtesy of MAZDA MOTORS CORP.
