Trunk Lid Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the handle outward, then remove the handle.
  2. Remove the fasteners, then remove the trunk lid trim.

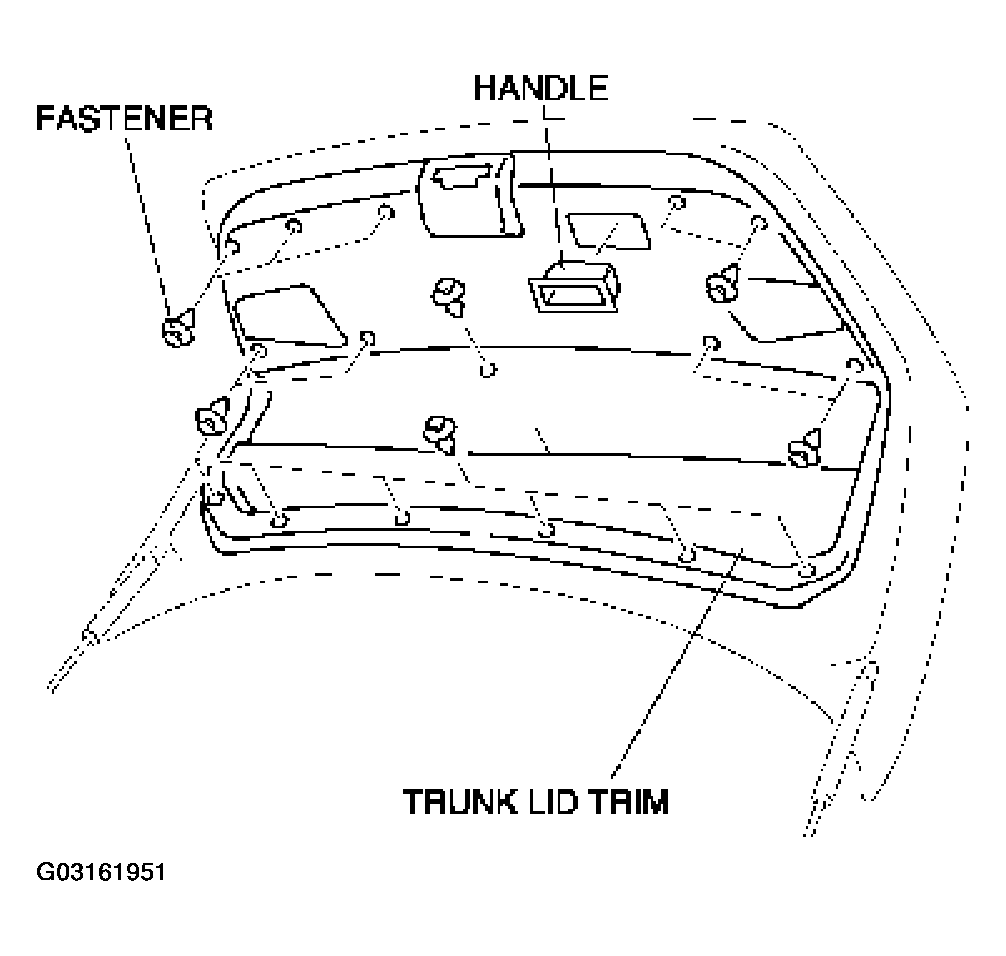

    Fig 1: Removing Trunk Lid Trim
    G03161951Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
