Trunk End Trim Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

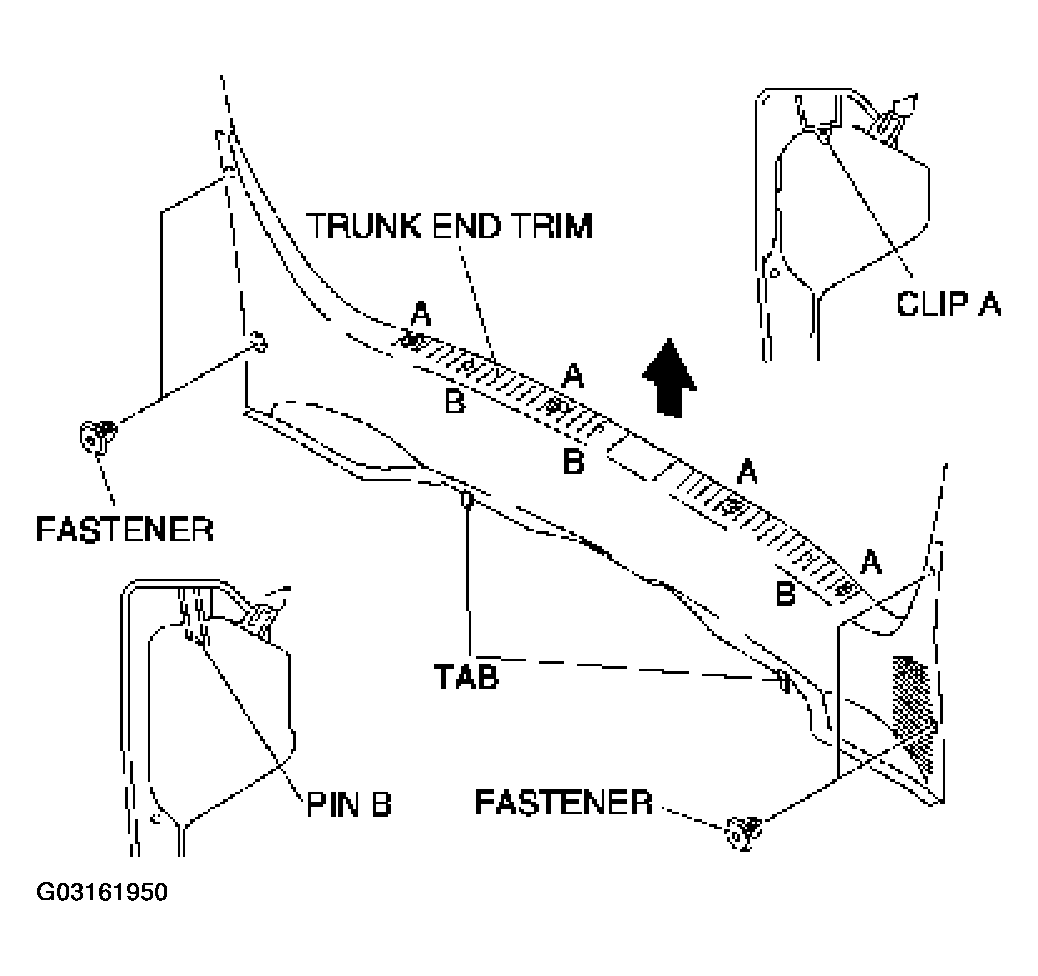

- Remove the fasteners.
- Pull the trunk end trim upward, then disengage clips A, pins B, and the tabs.
- Remove the trunk end trim.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
