Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Open the cap using a small screwdriver, then remove the screw.
    Fig 1: Removing Inner Handle Cover
    G03161944Courtesy of MAZDA MOTORS CORP.
  3. Remove the inner handle cover.
  4. Remove the cover, then remove screw A.
  5. Disengage clips A from the rear door using a fastener remover.
  6. Pull the rear door trim upward, then disengage tabs B from the rear door.

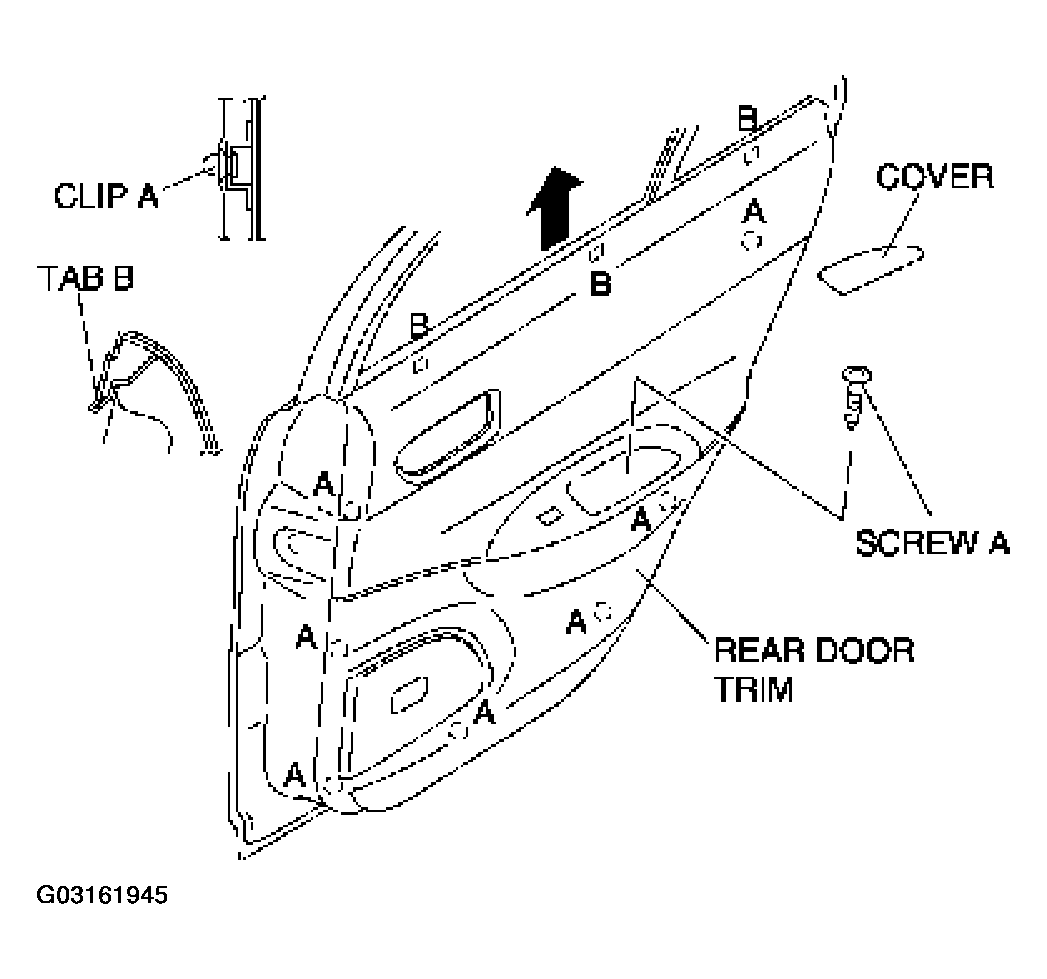

    Fig 2: Removing Rear Door Trim
    G03161945Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the power window subswitch connector.
  8. Remove the rear door trim.
  9. Remove the switch panel from the rear door trim.
  10. Install in the reverse order of removal.
