Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front seats. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Remove the rear seat.
  4. Remove the front scuff plates.
  5. Remove the rear scuff plates.
  6. Remove the B-pillar lower trims.
  7. Remove the front side trims.
  8. Remove the lower anchor of the front seat belt installation bolts.
  9. Remove the fuel-filler lid opener bezel.
  10. Remove the console.
  11. Remove the fasteners.
  12. Remove the cap nuts.
  13. Remove the clips.

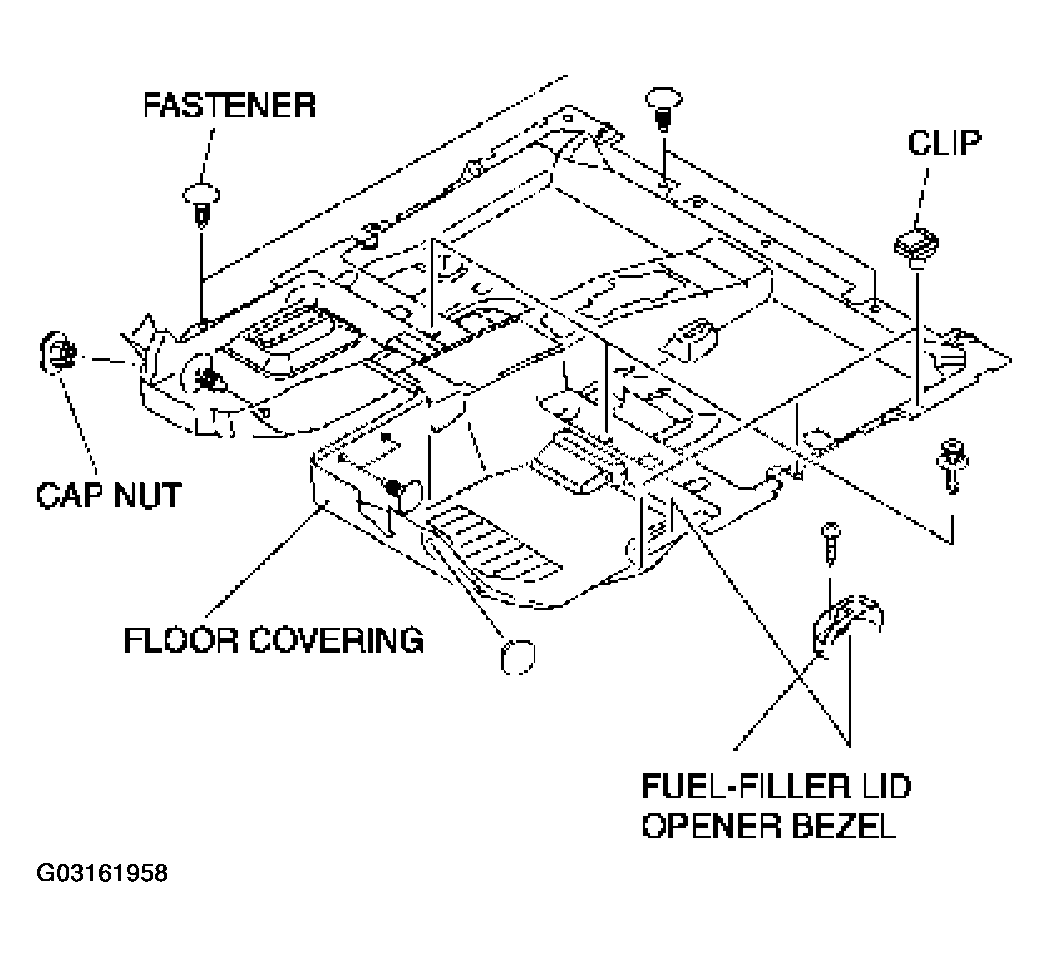

    Fig 1: Removing Floor Covering
    G03161958Courtesy of MAZDA MOTORS CORP.
  14. Take the floor covering off from the front passenger-side door opening.
  15. Install in the reverse order of removal.
