C-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire house trim.
  2. Partially peel back the seaming welt.
  3. Remove the cap using a fastener remover, and remove the bolt (with curtain air bag system).

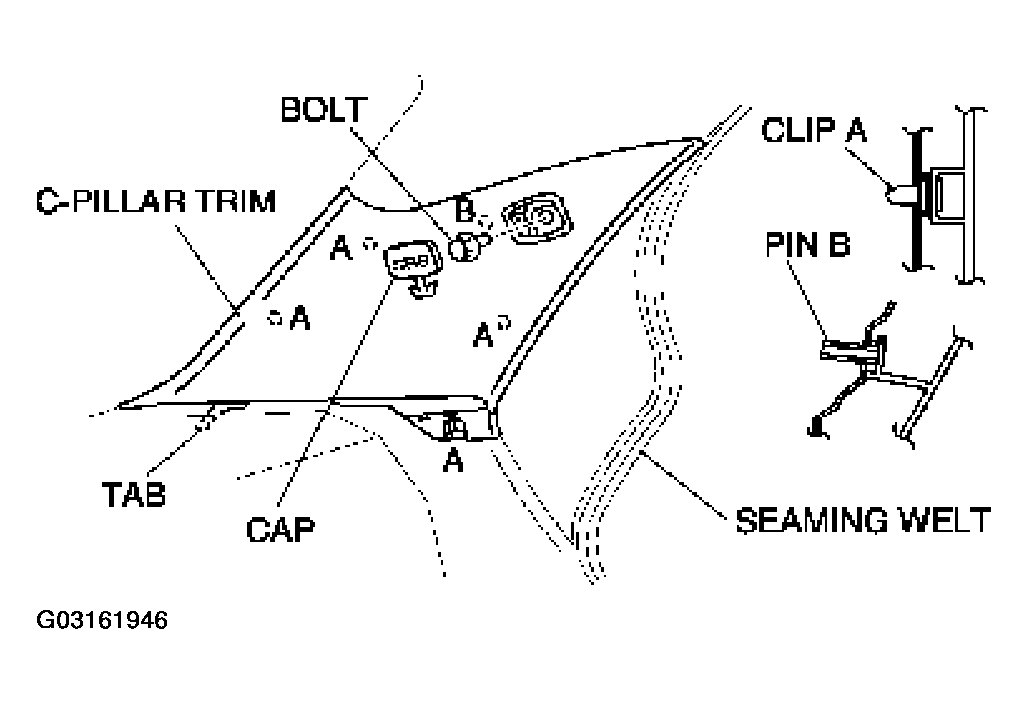

    Fig 1: Removing C-Pillar Trim
    G03161946Courtesy of MAZDA MOTORS CORP.
  4. Disengage clips A and pin B using a fastener remover.
  5. Pull the C-pillar trim outward, then disengage the tab from the body.
  6. Install in the reverse order of removal.
