B-Pillar Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper anchor of the front seat belt.
  2. Remove the B-pillar lower trim.
  3. Partially peel back the seaming welt.

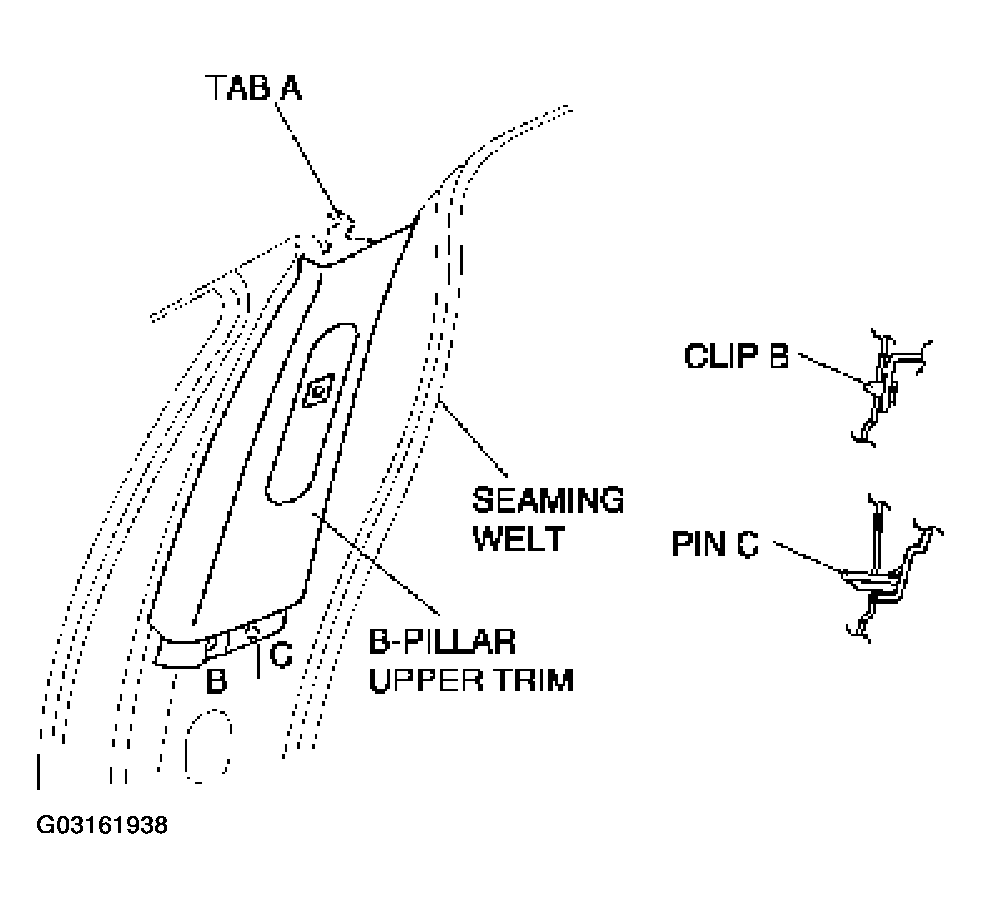

    Fig 1: Removing B-Pillar Upper Trim
    G03161938Courtesy of MAZDA MOTORS CORP.
  4. Pull the B-pillar upper trim outward, then disengage clip B and pin C from the body.
  5. Disengage tab A from the body, then remove B-pillar upper trim.
  6. Install in the reverse order of removal.
