Rear BELTLINE Molding Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Press the clip at section C into the body.

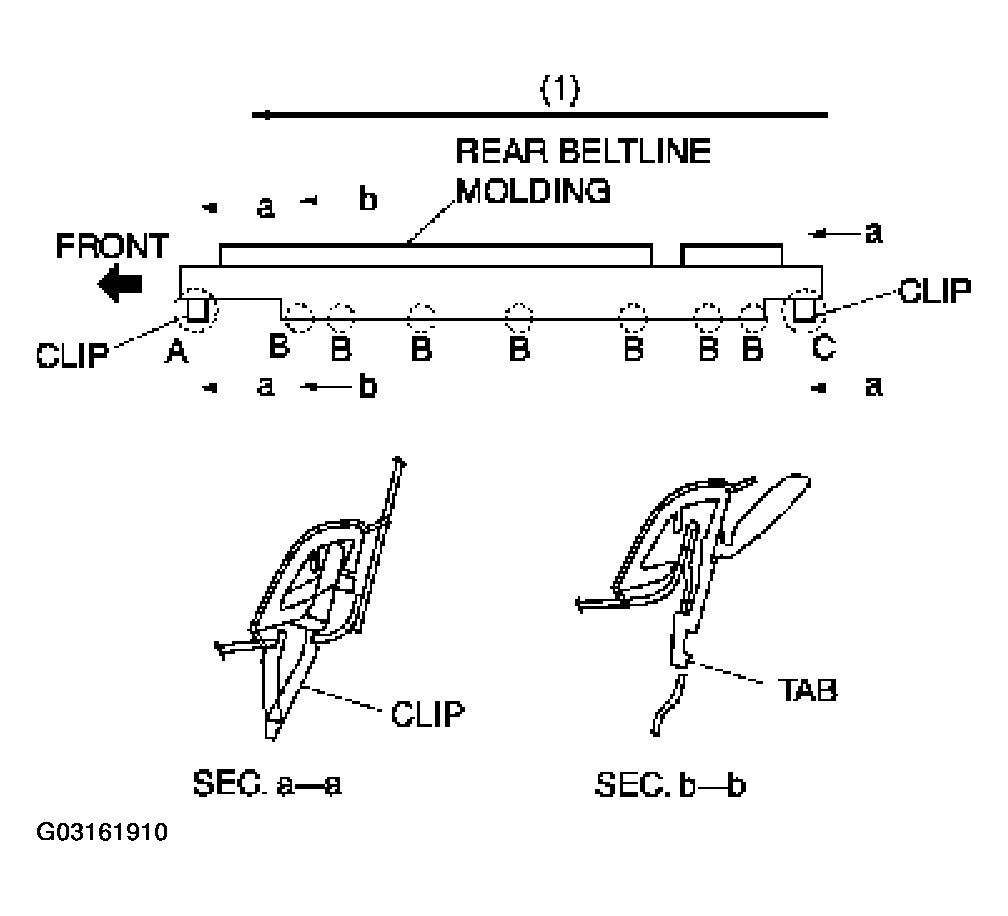

Fig 1: Installing Rear Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Press in section B of the rear beltline molding along the direction (1) to attach it to the body.
Press the clip at section A in and attach the rear beltline molding.

NOTE:

If the rear beltline molding is difficult to attach, apply soapy water.
