Disassembly & Reassembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1 .
Assemble in the reverse order of disassembly. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Bleed air from system. See BLEEDING BRAKE SYSTEM .
NOTE:
- When installing the secondary piston, install the secondary piston with the piston hole facing the stop pin (with ABS) or stop screw (without ABS). See Fig 2 .
- Install a new O-ring onto the stop pin (with ABS) or stop screw (without ABS).
- Install the stop pin (with ABS) or stop screw (without ABS).
- Push and release the secondary piston assembly to verify that it is held by the stop pin (with ABS) or stop screw (without ABS).

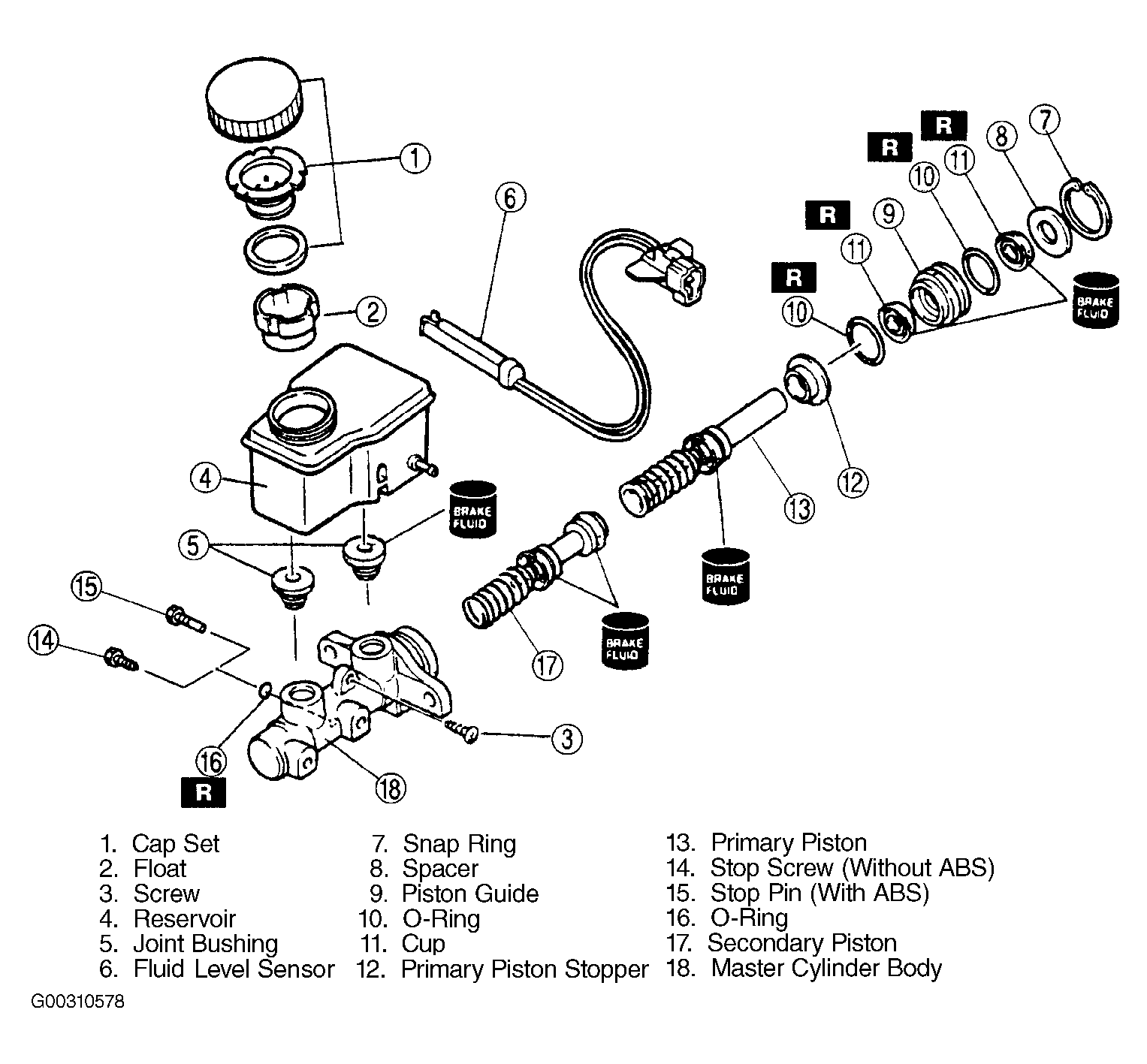

Fig 1: Exploded View Master Cylinder

Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Stop Pin (With ABS) Or Stop Screw (Without ABS)

Courtesy of MAZDA MOTORS CORP.
