Disassembly & Reassembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the illustration. See Fig 1 .
    CAUTION: Blow the compressed air slowly to prevent the piston from suddenly popping out.
  2. Place a piece of wood in the caliper, then blow compressed air through the hole to force the piston out of the caliper.
  3. Remove the piston seal from the brake caliper by using the Seal Removal Pick (49-0208-701A). See Fig 2 .
  4. Assemble in the reverse order of disassembly. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

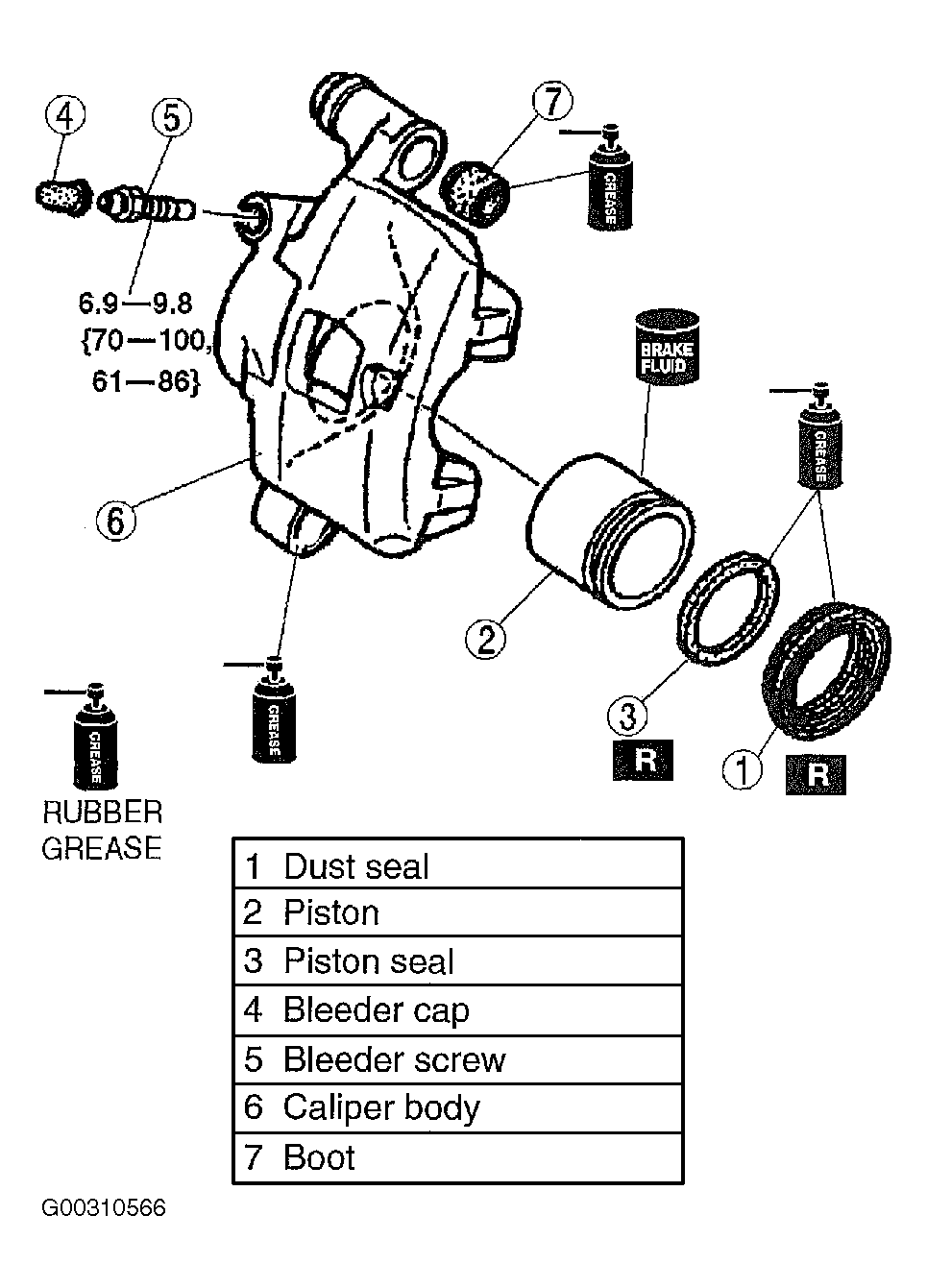

Fig 1: Disassembling Front Caliper
G00310566Courtesy of MAZDA MOTORS CORP.
Fig 2: Removing Piston Seal
G00310552Courtesy of MAZDA MOTORS CORP.
