Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear bumper.
  3. Remove in the order indicated in the table.

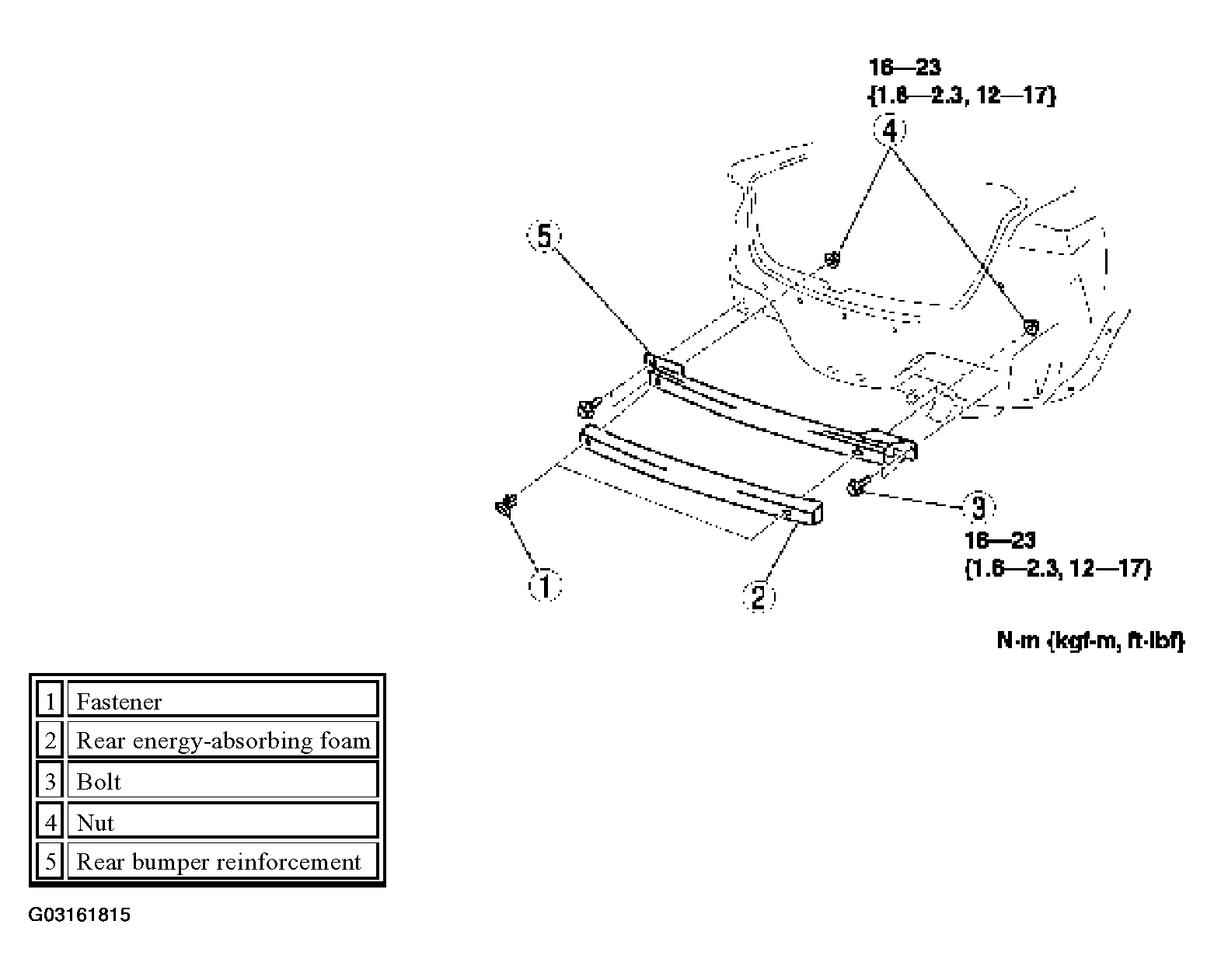

    Fig 1: Rear Bumper Reinforcement Removal Sequence
    G03161815Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
