Front Bumper Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the front bumper ends (wheel arch) outward to disengage from the bumper slider.

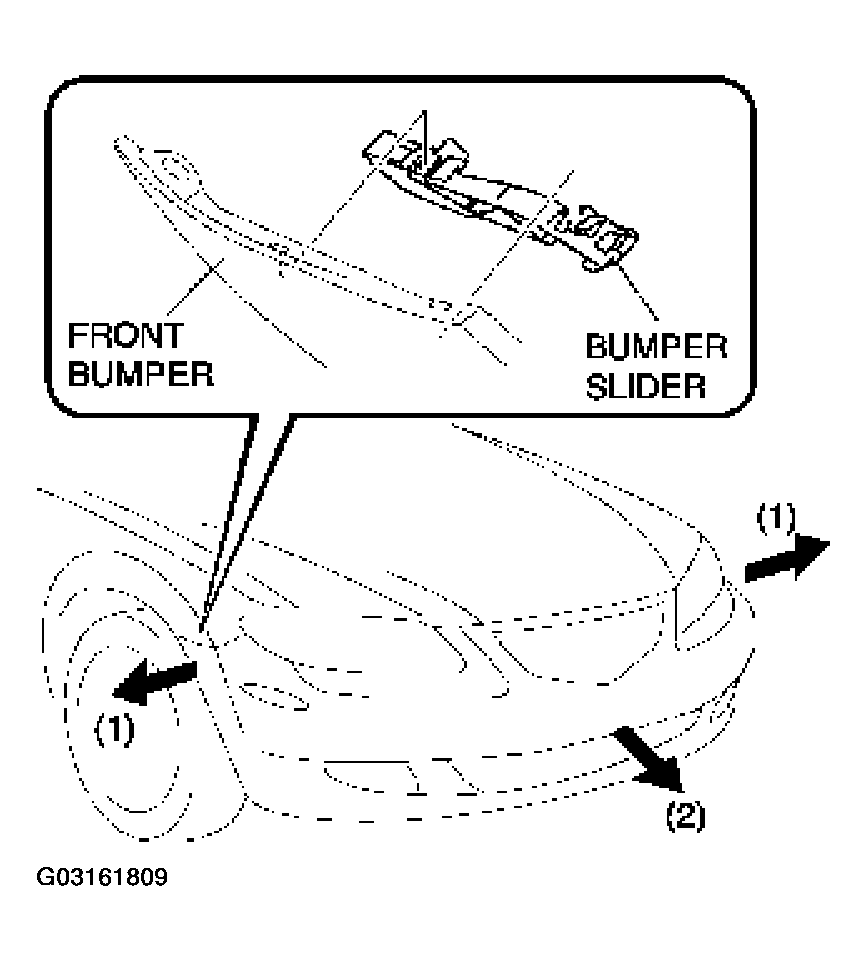

    Fig 1: Disengaging Bumper Slider
    G03161809Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If only one side of the front bumper is disengaged from the bumper slider and the bumper falls, it could be damaged. When disengaging the front bumper from the slider, secure the bumper so that it does not fall.
  2. Remove the front bumper from the body.
