Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

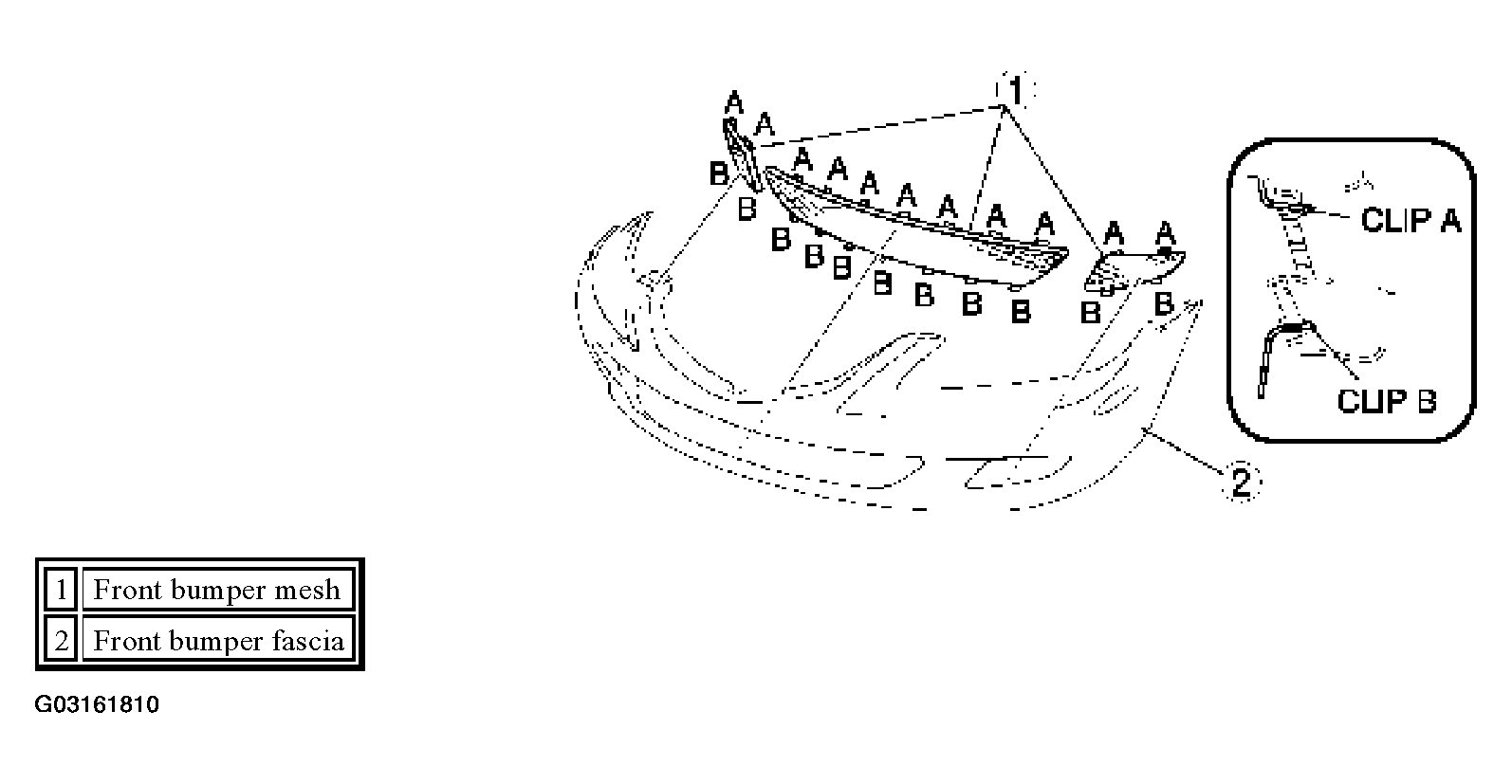

    Fig 1: Disassembling Front Bumper Assembly
    G03161810Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
