Second-Row Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

Remove the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Second-Row Seat Belt Removal Chart

1 Anchor cover

2 Second-row seat belt

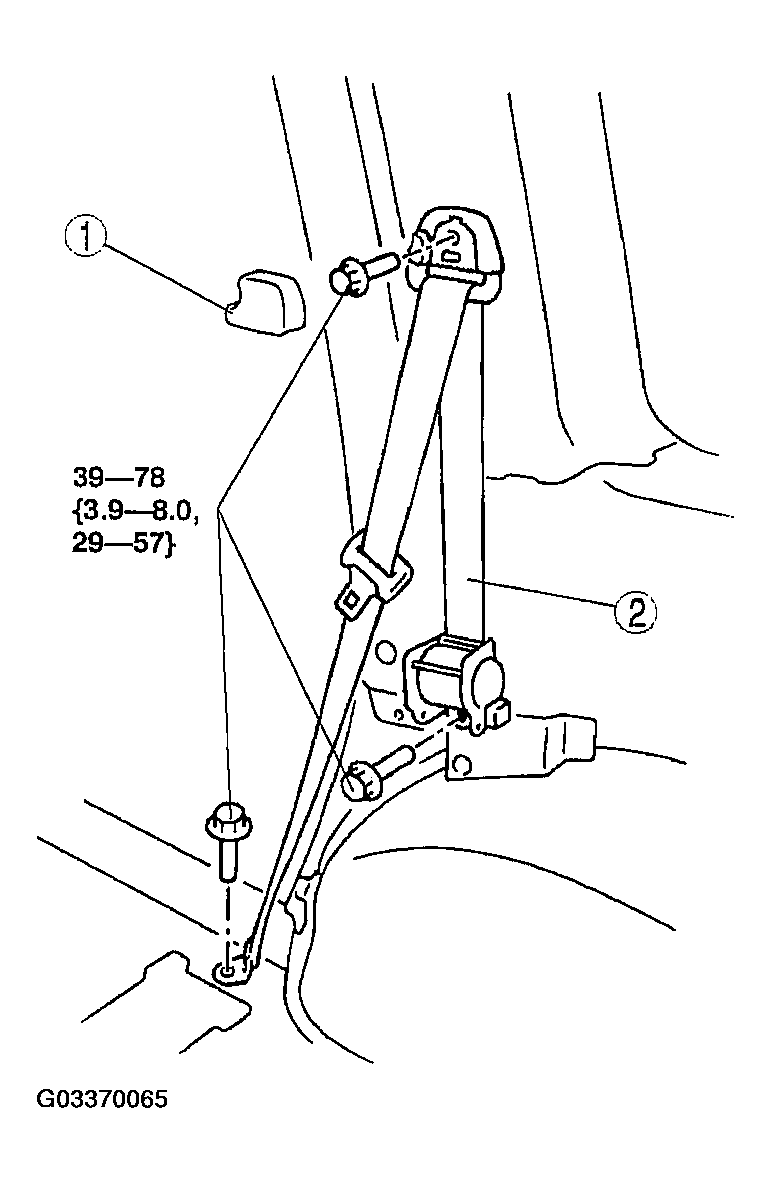

Fig 1: Second-Row Seat Belt Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

1	Anchor cover
2	Second-row seat belt
