Seat Warmer Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the seat warmer switch terminals using an ohmmeter.
- If not as specified, replace the seat warmer switch.

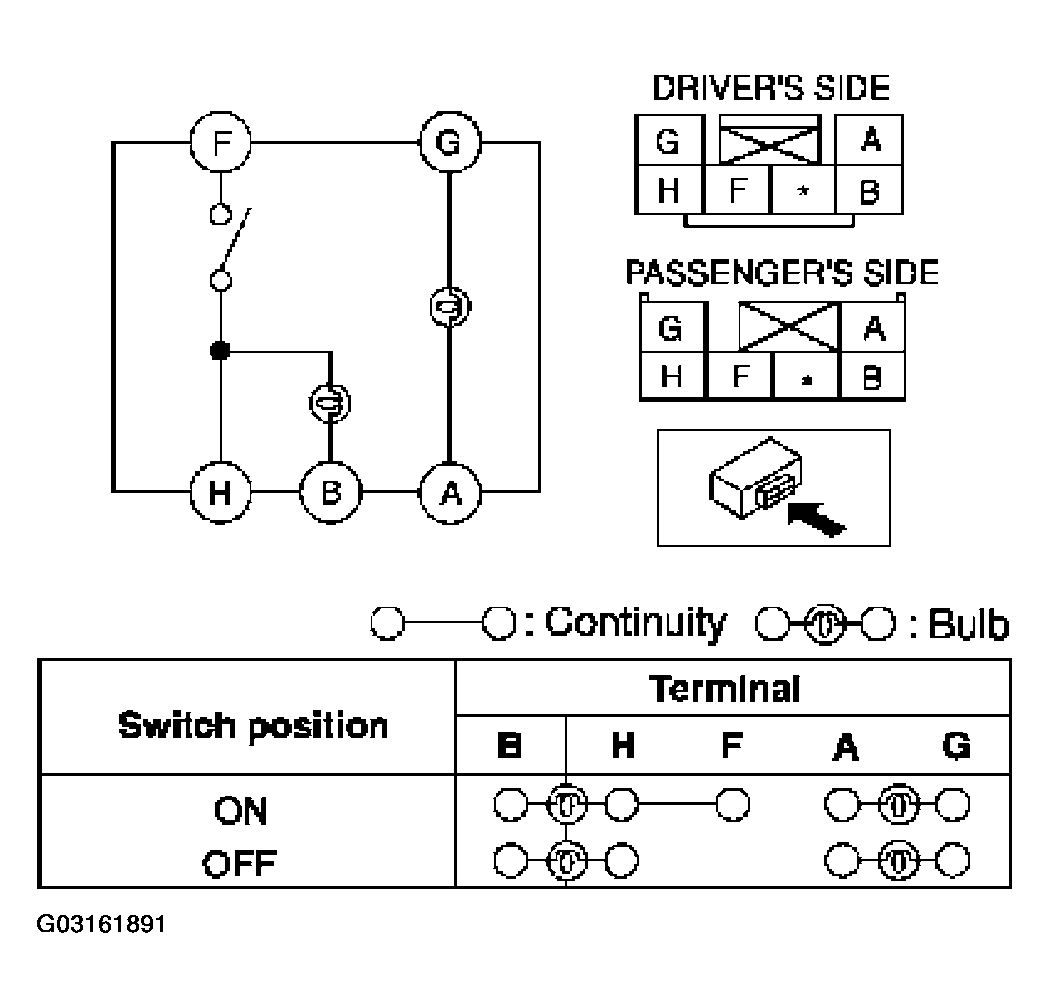

Fig 1: Inspecting Continuity Between The Seat Warmer Switch Terminals

Courtesy of MAZDA MOTORS CORP.
