Remote Handle Lever Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the remote wire, remove the trunk side trim.
  2. Remove in the order indicated in the figure.

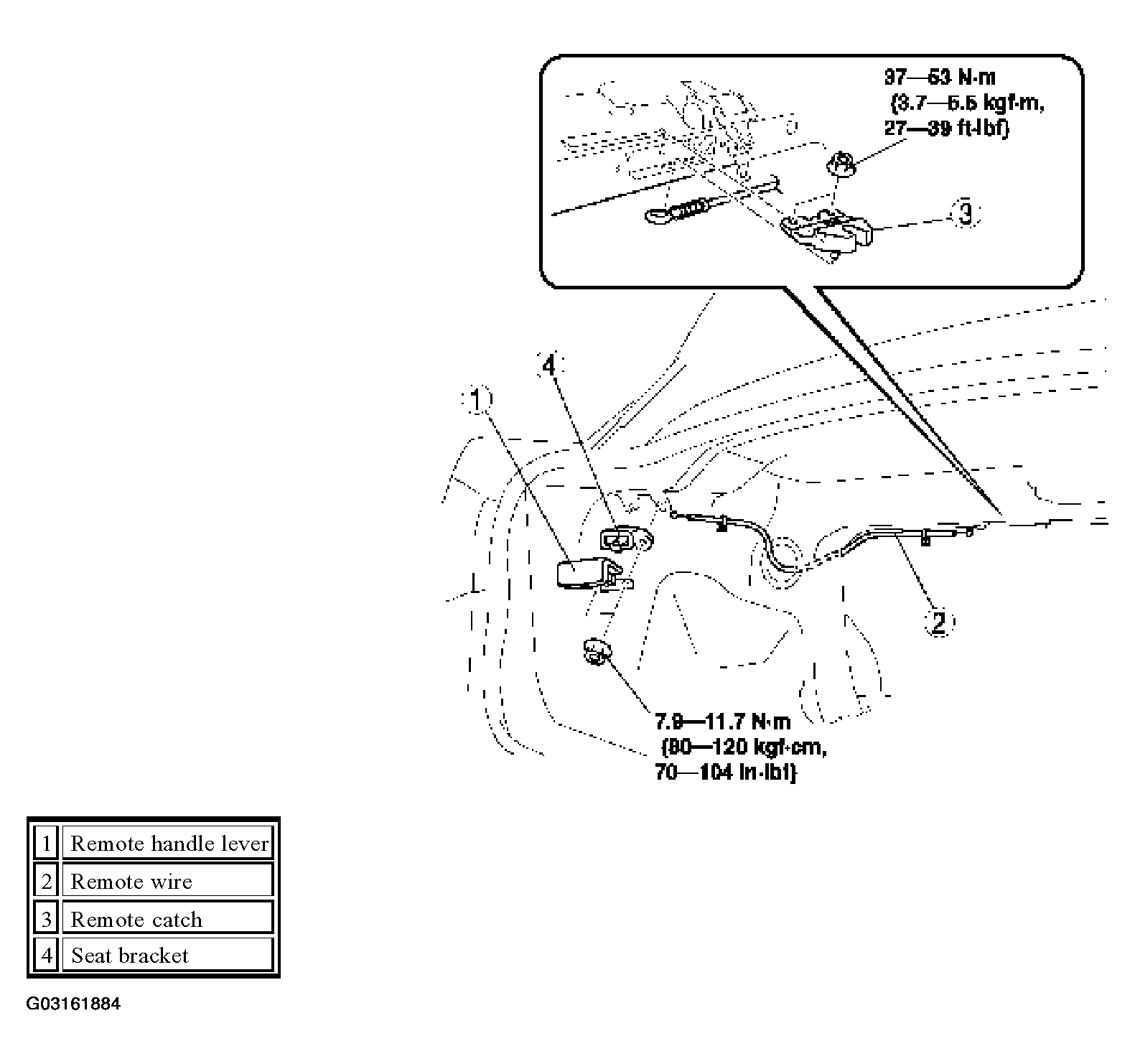

    Fig 1: Rear Seat Removal Sequence
    G03161884Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
