Slide Motor Inspection
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the slide motor connector.

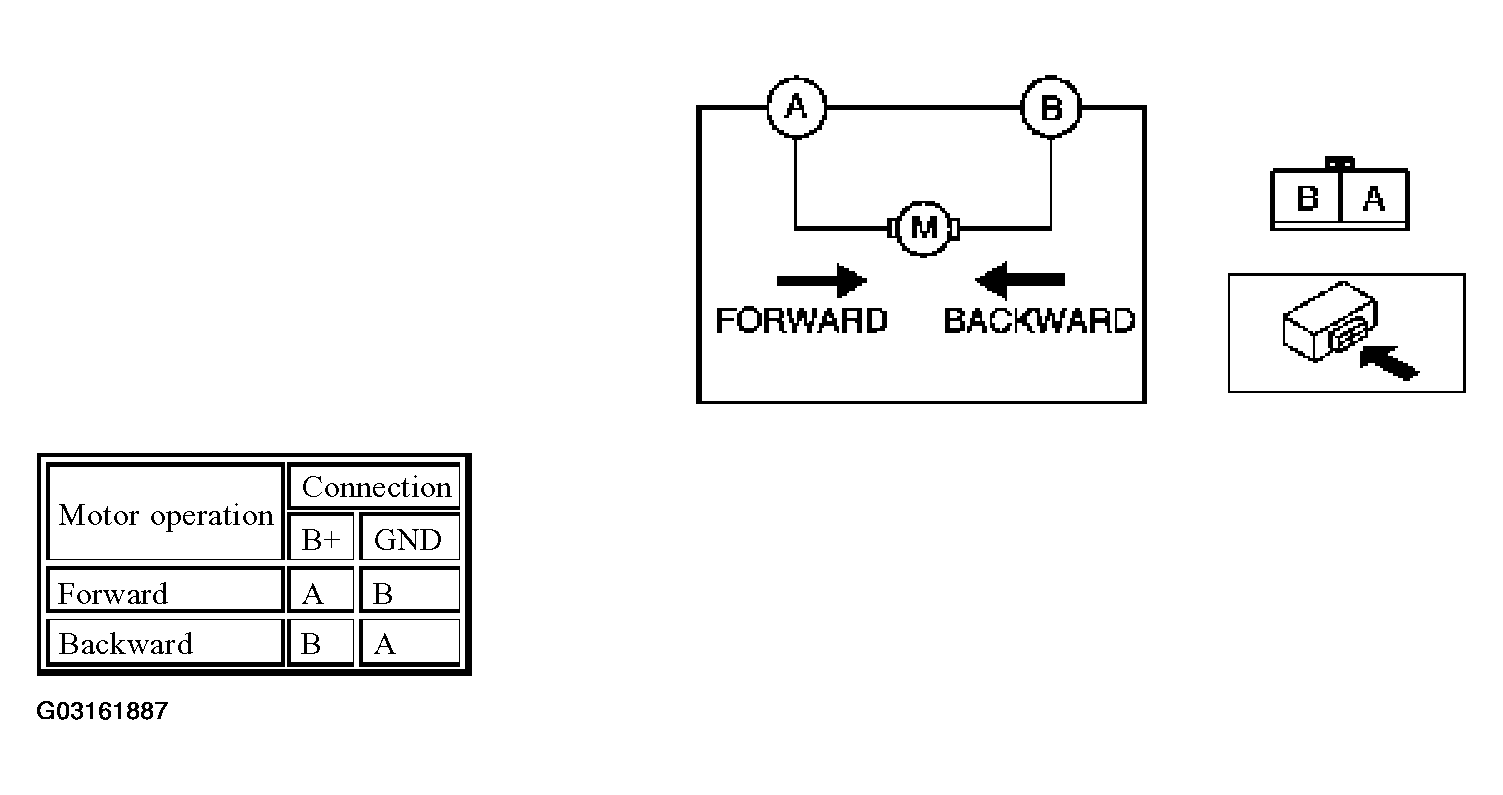

- Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation
- If not as specified, replace the seat cushion frame.
Courtesy of MAZDA MOTORS CORP.
