Power Seat Switch Inspection
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the power seat switch connector.
- Disconnect the rear tilt motor connector.

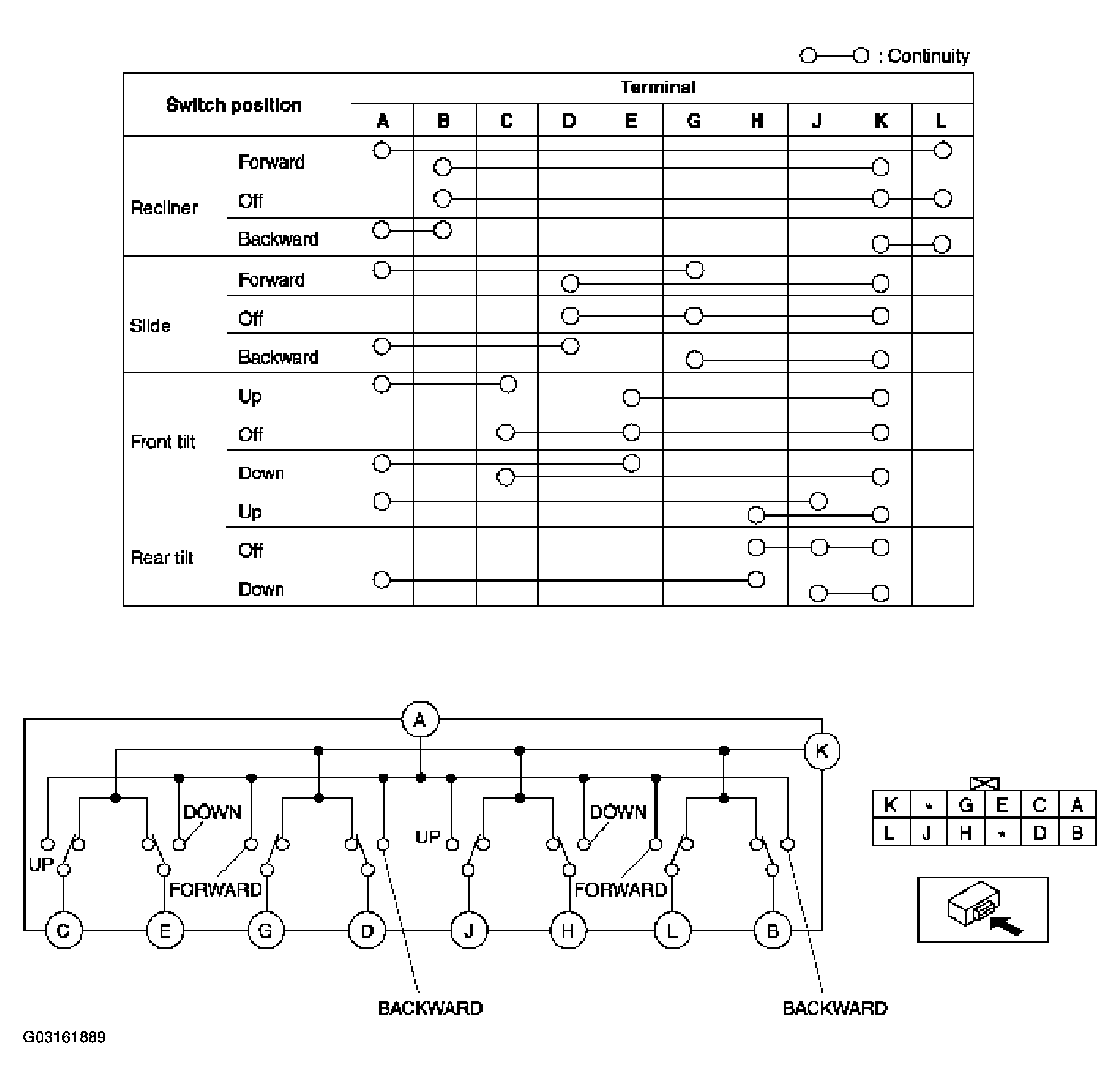

- Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.
Courtesy of MAZDA MOTORS CORP.
