Stub Shaft Pilot Bearing Housing And Seal: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

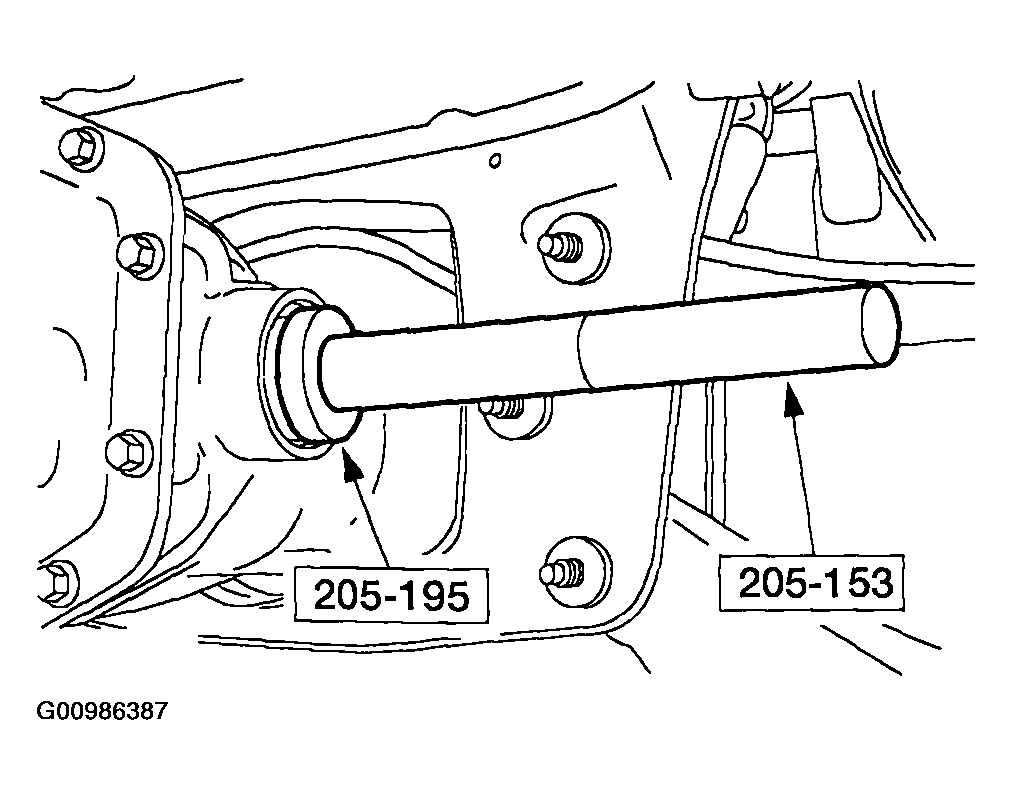

Fig 1: Installing Stub Shaft Pilot Bearing

Courtesy of MAZDA MOTORS CORP.

NOTE:

Lubricate the new stub shaft pilot bearing with rear axle lubricant.

To install the bearing, use the special tools, install the stub shaft pilot bearing.

Fig 2: Installing Stub Shaft Pilot Bearing Housing Seal
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the new stub shaft pilot bearing housing seal with grease.
To install the seal, use the special tools and install the stub shaft pilot bearing housing seal.
CAUTION:
- Inspect the inboard CV joint seal journal for rust or nicks/scratches prior to installing the halfshaft. If necessary, polish the seal journal with fine crocus cloth.
Install the halfshaft assembly. Refer to HALFSHAFT -- REAR .
