Rotary Blade Coupling: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driveshaft. Refer to DRIVESHAFT .

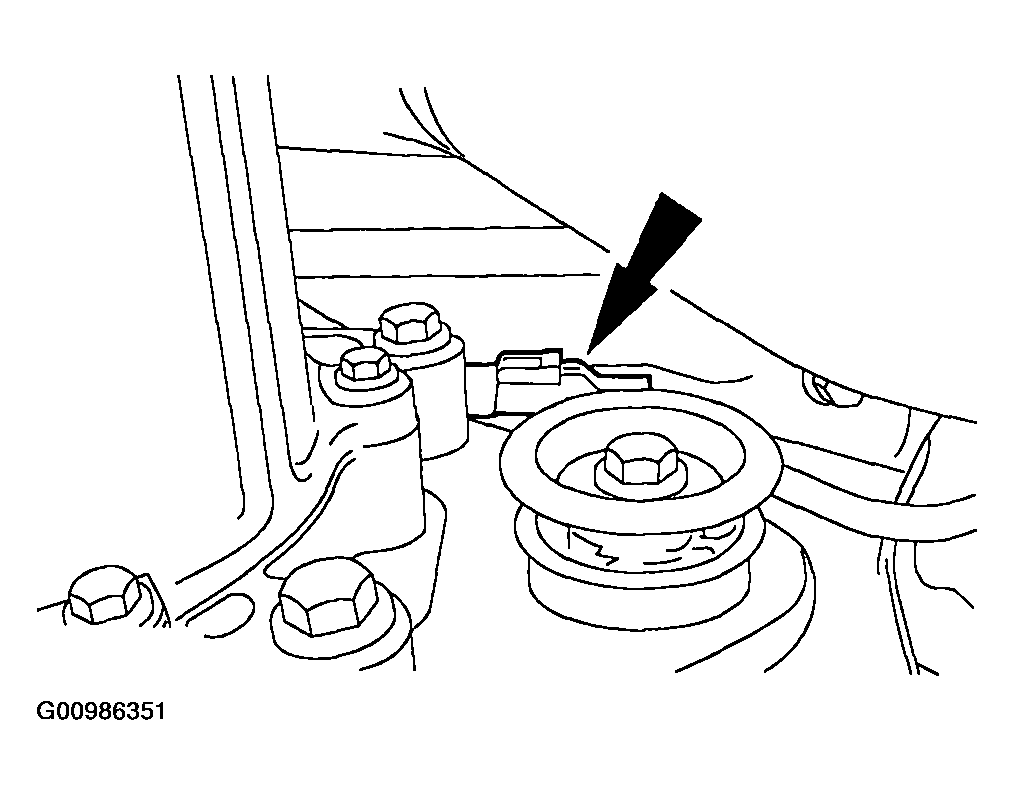

Fig 1: Locating Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.

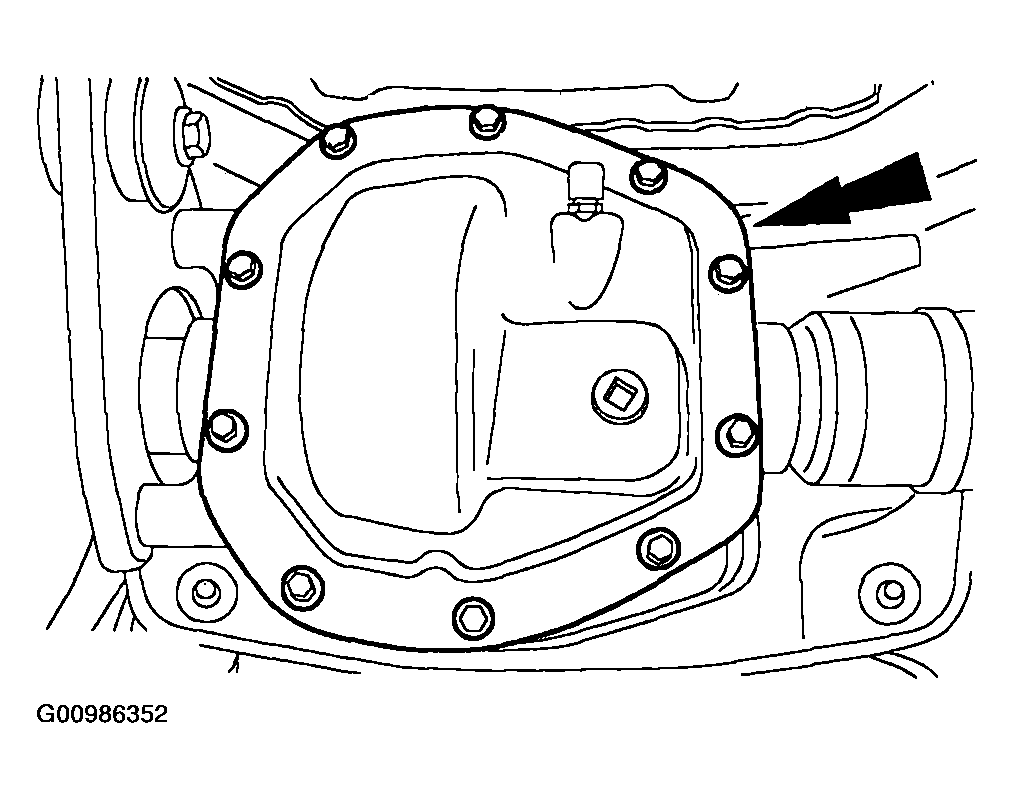

Fig 2: Locating Bolts And Rear Differential Cover
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Drain the differential fluid into a suitable drain pan.
Remove the bolts and the rear differential cover.
Drain the differential fluid from the housing.

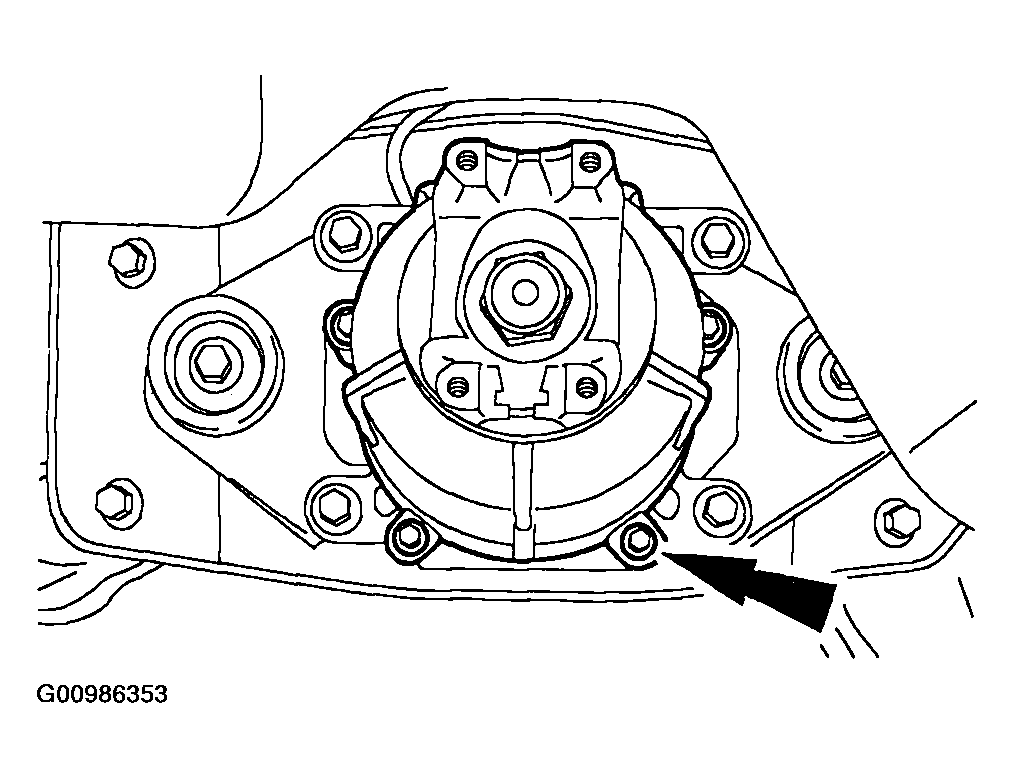

Fig 3: Removing Six Bolts And Rotary Blade Coupling Assembly
Courtesy of MAZDA MOTORS CORP.
Remove the six bolts and rotary blade coupling assembly.
