Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. .

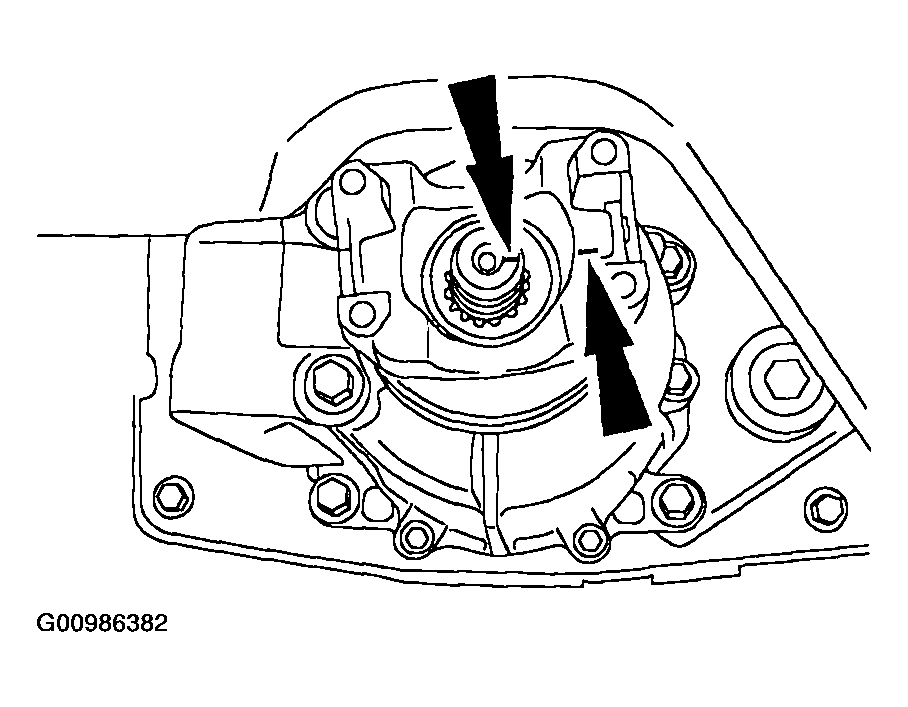

Fig 1: Locating Universal Joint Caps Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the rear driveshaft universal joint caps.
1. Index-mark the pinion and pinion flange to the rear of the driveshaft.
2. Remove the bolts.
- Support the driveshaft.

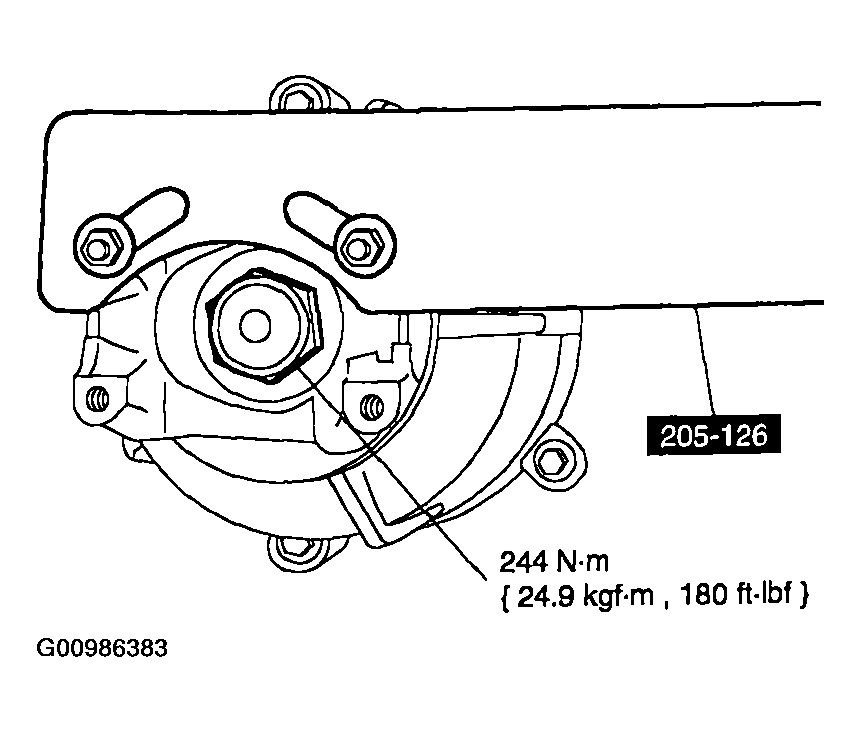

Fig 2: Hold Pinion Flange While Removing Nut
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Discard the nut after removing it. Install a new nut during installation.
Using the special tool, hold the pinion flange while removing the nut.
Remove the nut.

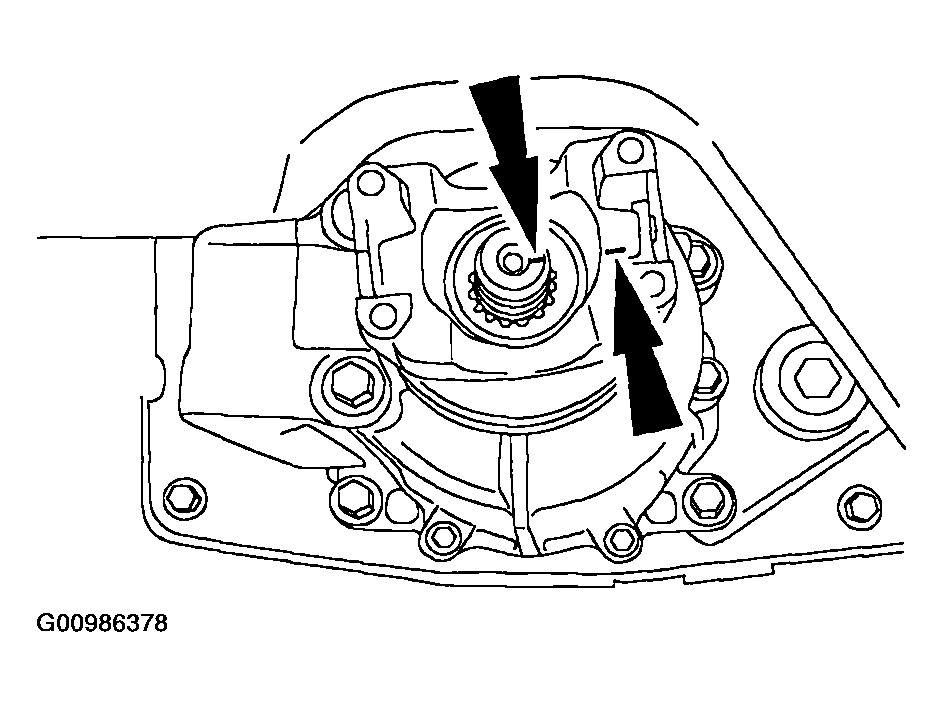

Fig 3: Locating Index-Mark
Courtesy of MAZDA MOTORS CORP.
Index-mark the location of the pinion to the yoke.

Fig 4: Removing Pinion Flange
Courtesy of MAZDA MOTORS CORP.
Using the special tool, remove the pinion flange.

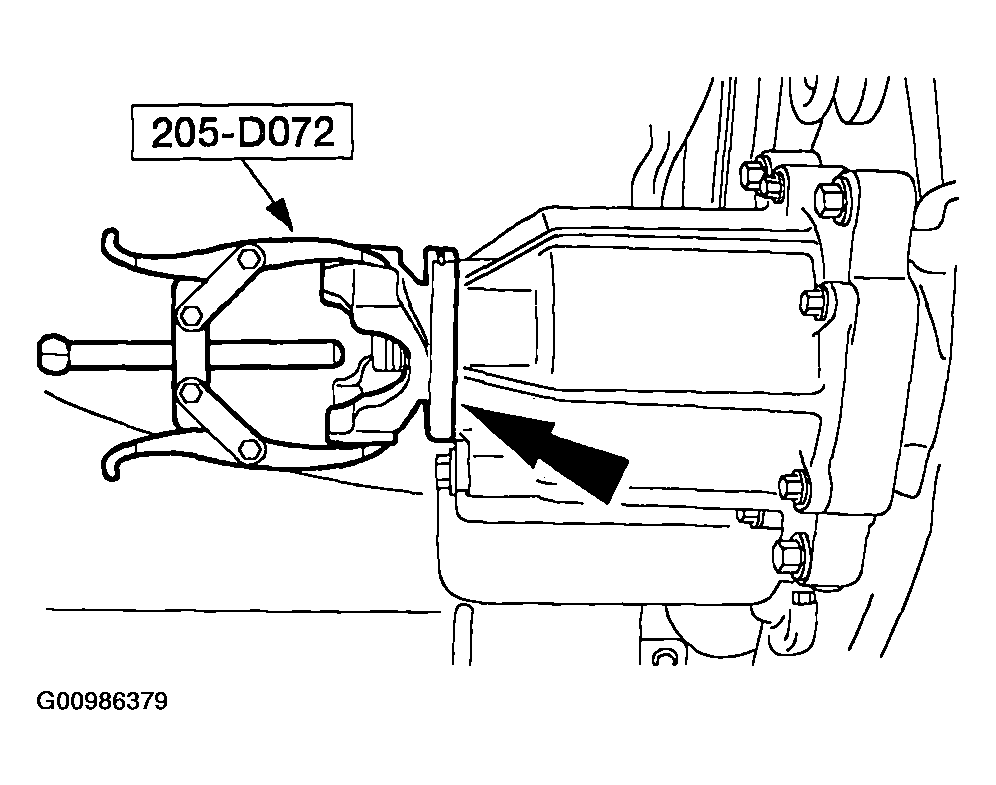

Fig 5: Removing Seal
Courtesy of MAZDA MOTORS CORP.
Using the special tool, remove the seal.

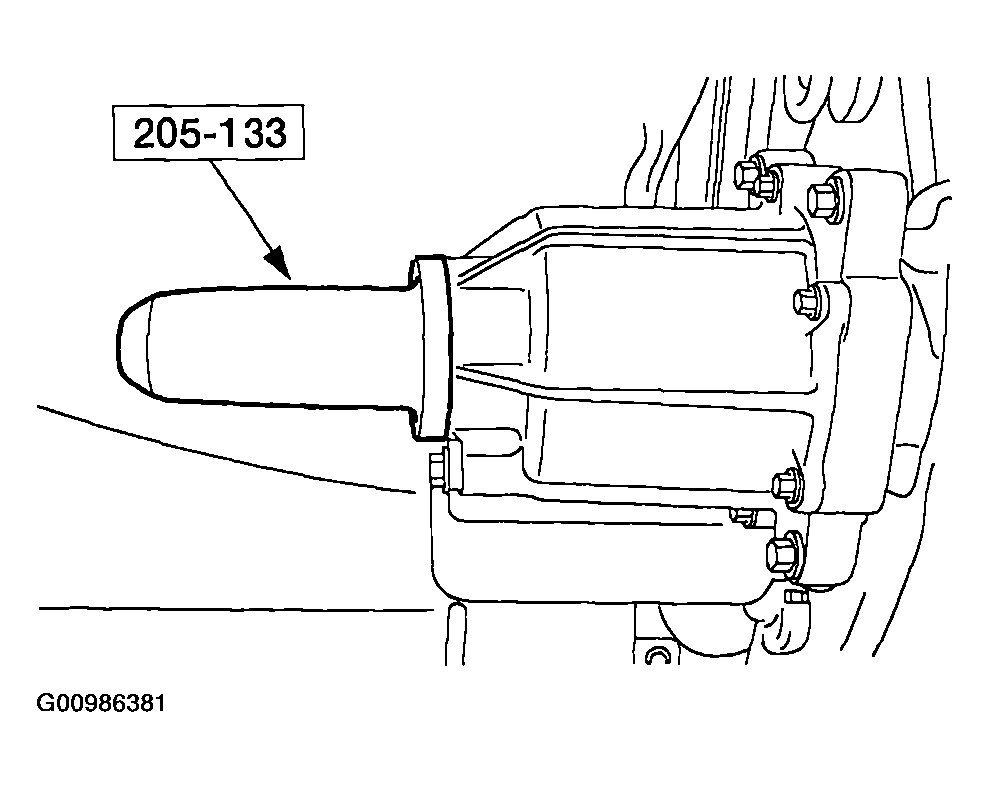

Fig 6: Installing Seal
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Make sure that the mating surface is clean before installing the new seal.
Using the special tool, Install the seal.

Fig 7: Positioning Pinion Flange
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the pinion flange with premium long-life grease.
Line up the index marks and position the pinion flange.

Fig 8: Installing Nut Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, Install the nut.

Fig 9: Installing Rear Driveshaft Universal Joint
Courtesy of MAZDA MOTORS CORP.
Install the rear driveshaft universal joint.
1. Line up the index marks.
2. Install the caps and bolts.
