Differential Housing Cover: Removal
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
.
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Drain the differential fluid into a suitable drain pan.

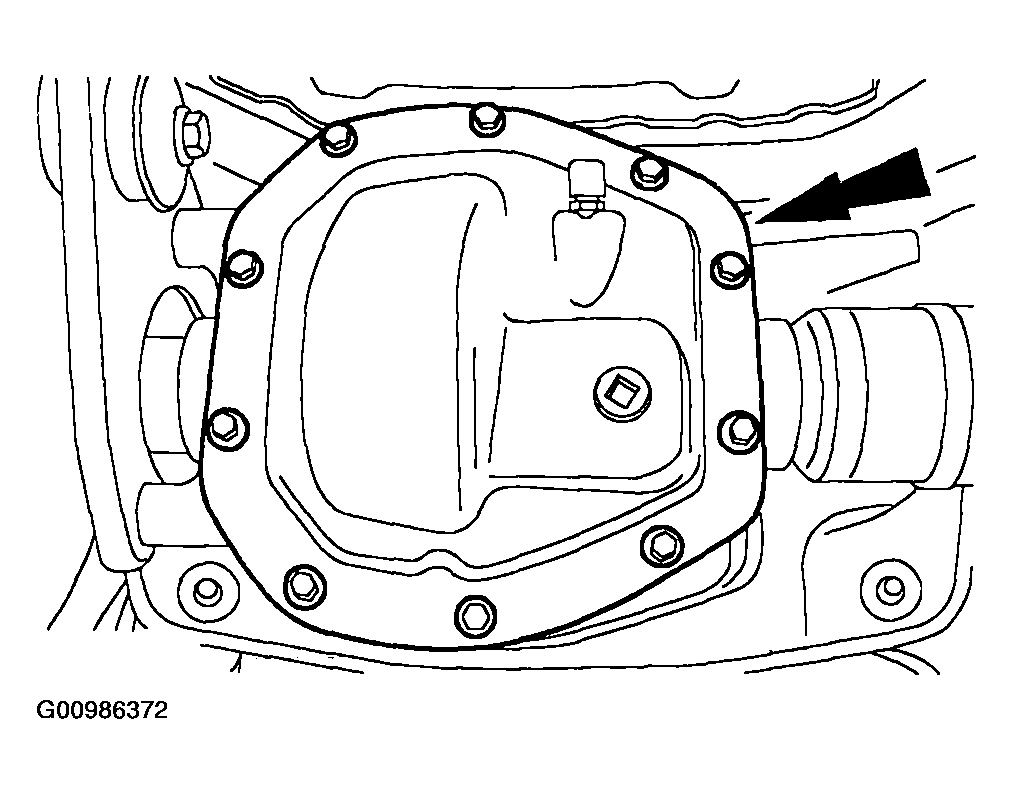

- Remove the bolts and the rear differential cover.
- Drain the differential fluid from the housing.
