Muffler And Tailpipe

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. .

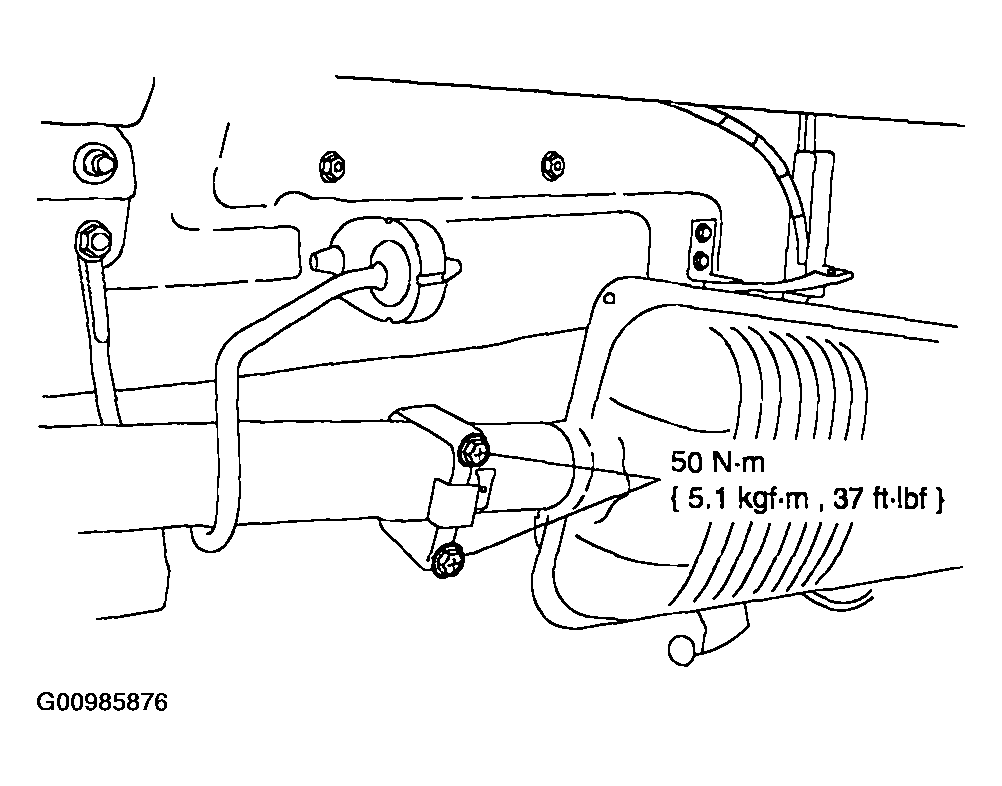

Fig 1: Removing U-Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the U-bolt.

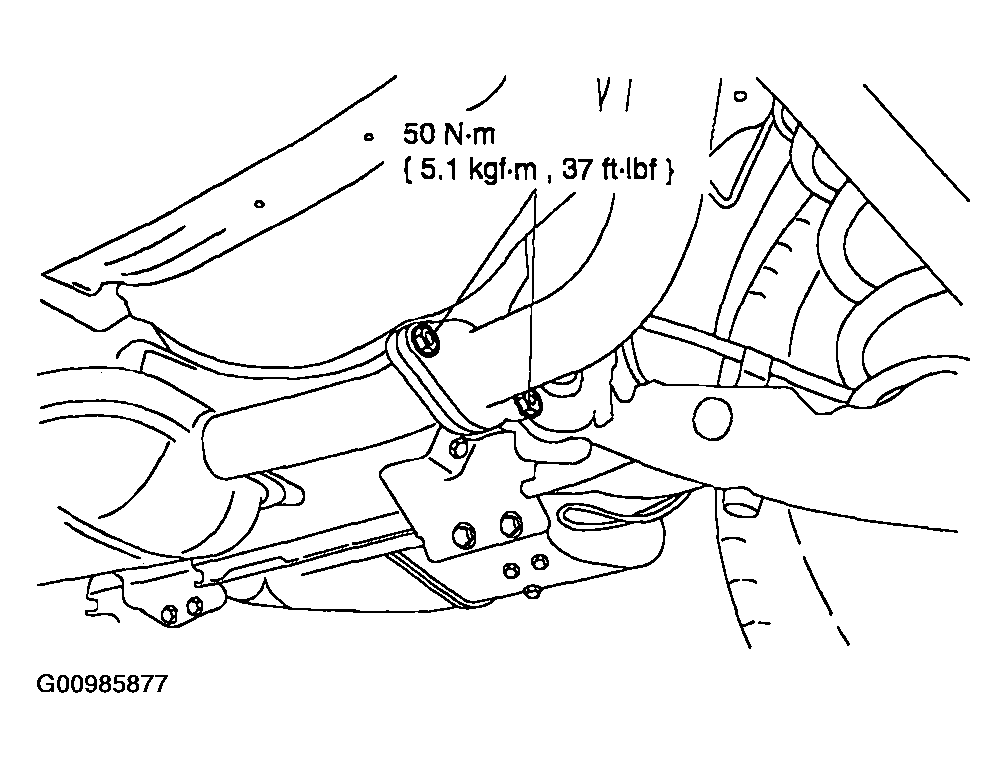

Fig 2: Removing Nuts & Muffler
Courtesy of MAZDA MOTORS CORP.
Remove the nuts and the muffler.
Discard the gasket and nuts.
To install, reverse the removal procedure.
Install a new gasket.

Install new nuts.
