Exhaust Manifold - RH: Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

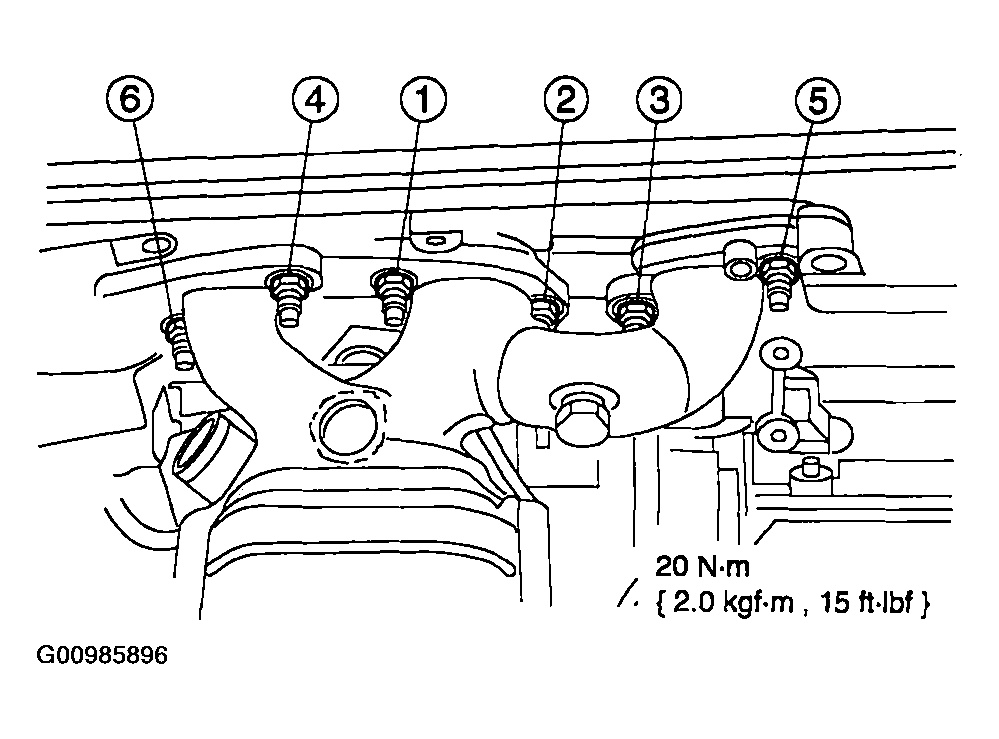

Fig 1: Exhaust Manifold Nut Installation Sequence
G00985896Courtesy of MAZDA MOTORS CORP.
  1. Position a new gasket and install the exhaust manifold nuts in the sequence shown.
  2. Install the EGR tube. Refer to EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION .
  3. Install RH the HO2S. Refer toHEATED OXYGEN SENSOR .
  4. Install the exhaust flexible pipe. Refer to EXHAUST FLEXIBLE PIPE - 3.0L DURATEC (4V)  .
  5. Install the generator. Refer to REMOVAL & INSTALLATION (3.0L) .
