Exhaust Manifold - LH: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH heated oxygen sensor (HO2S). Refer to HEATED OXYGEN SENSOR .

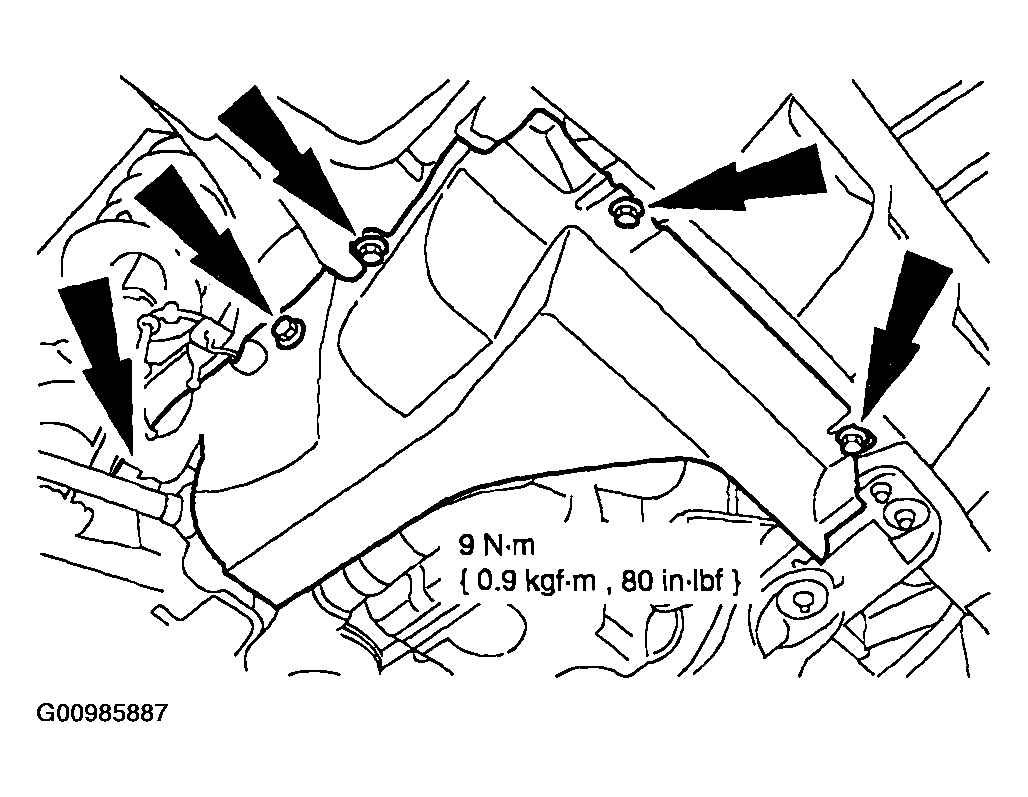

Fig 1: Removing Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the splash shield.

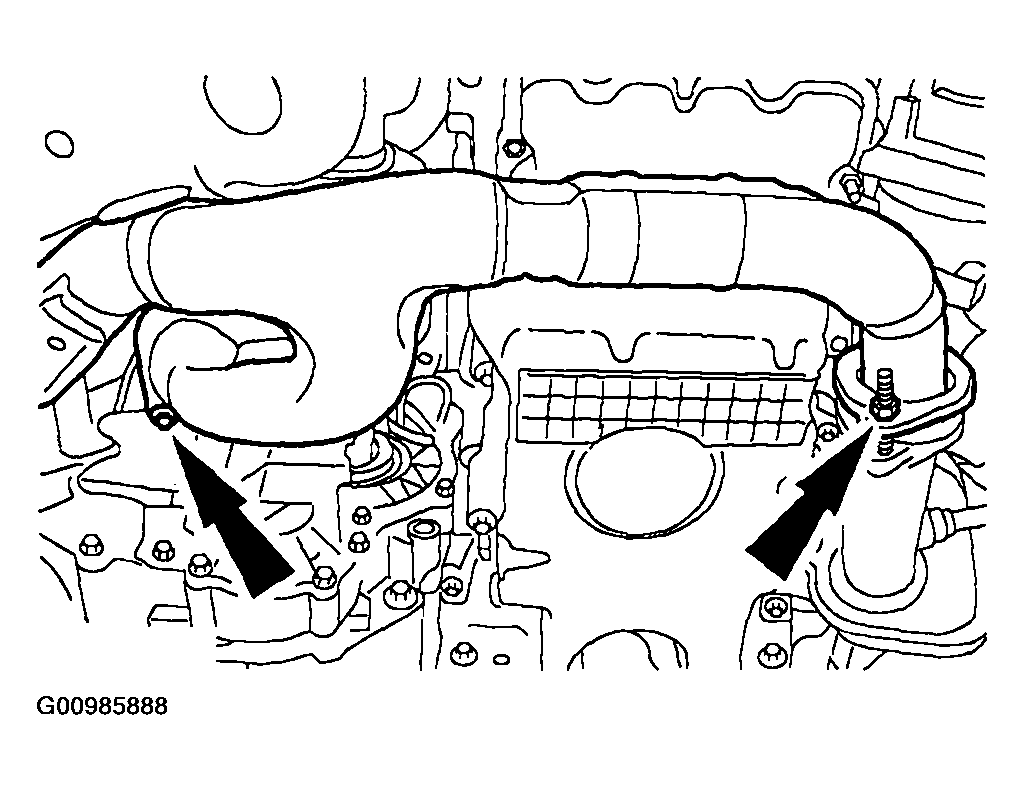

Fig 2: Removing Exhaust Crossover
Courtesy of MAZDA MOTORS CORP.
Remove the exhaust crossover and position aside.
Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT - 3.0L DURATEC (4V) .

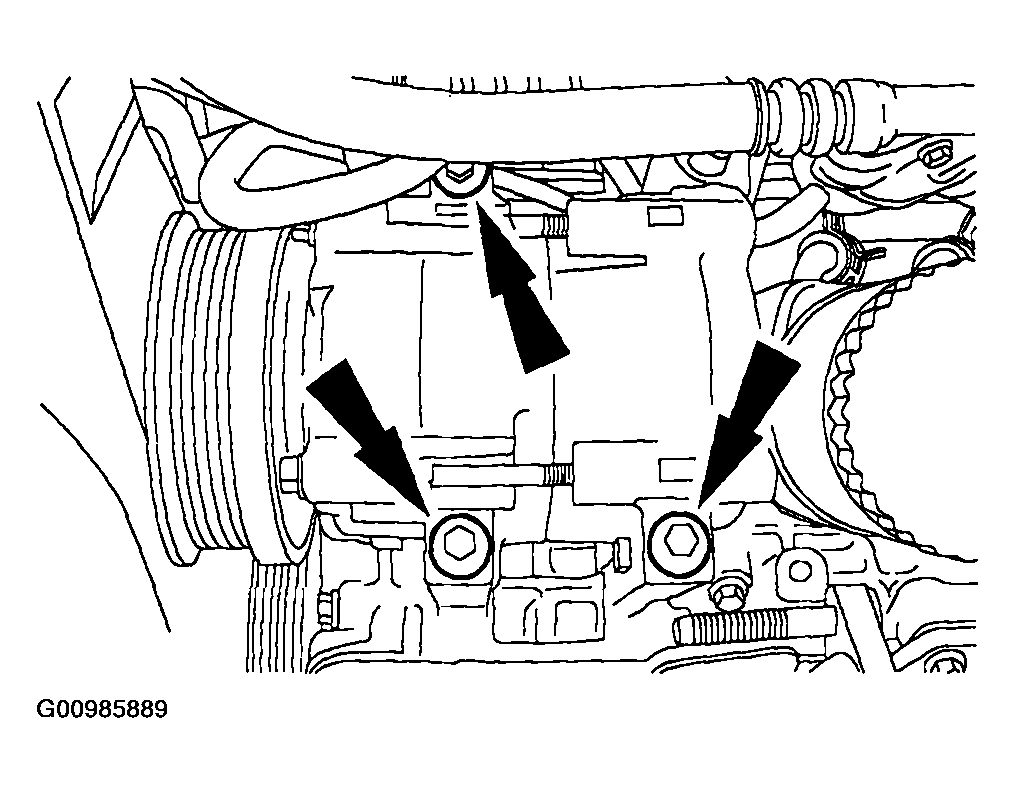

Fig 3: Removing A/C Compressor Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the A/C compressor bolts and position aside.

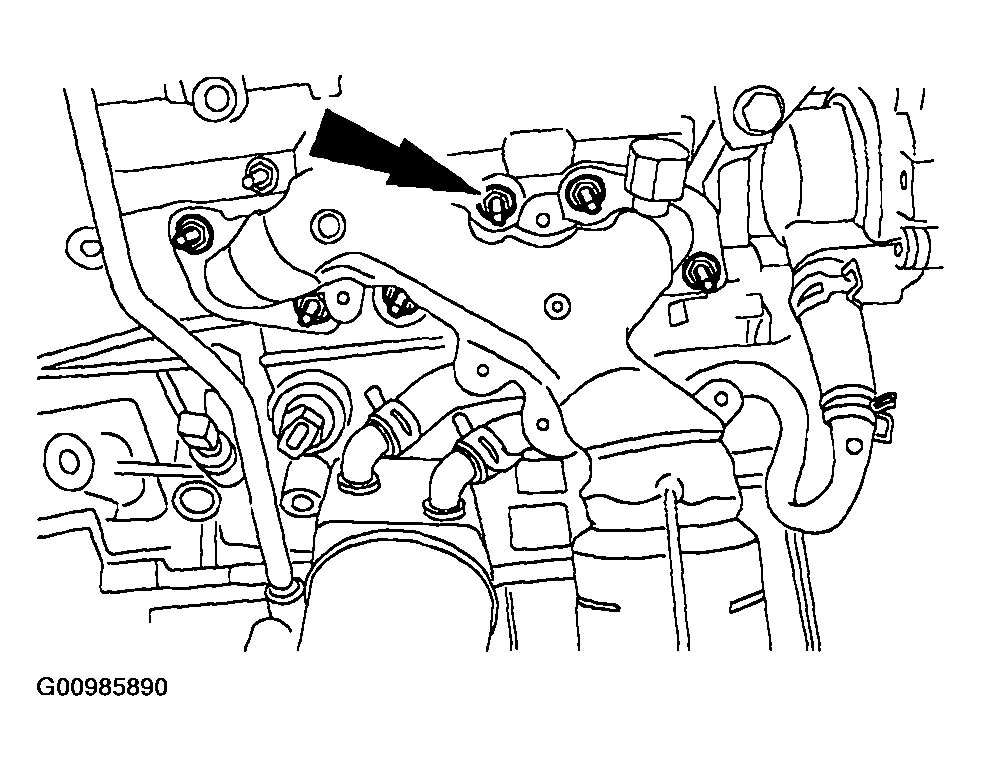

Fig 4: Removing LH Exhaust Manifold
Courtesy of MAZDA MOTORS CORP.
Remove the nuts and LH exhaust manifold and discard the gasket.
