Circuit Open/Short Inspection: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the PCM connector. (See REMOVAL & INSTALLATION (MAZDA6) .)
  2. Inspect the following wiring harness for open or short (continuity check).

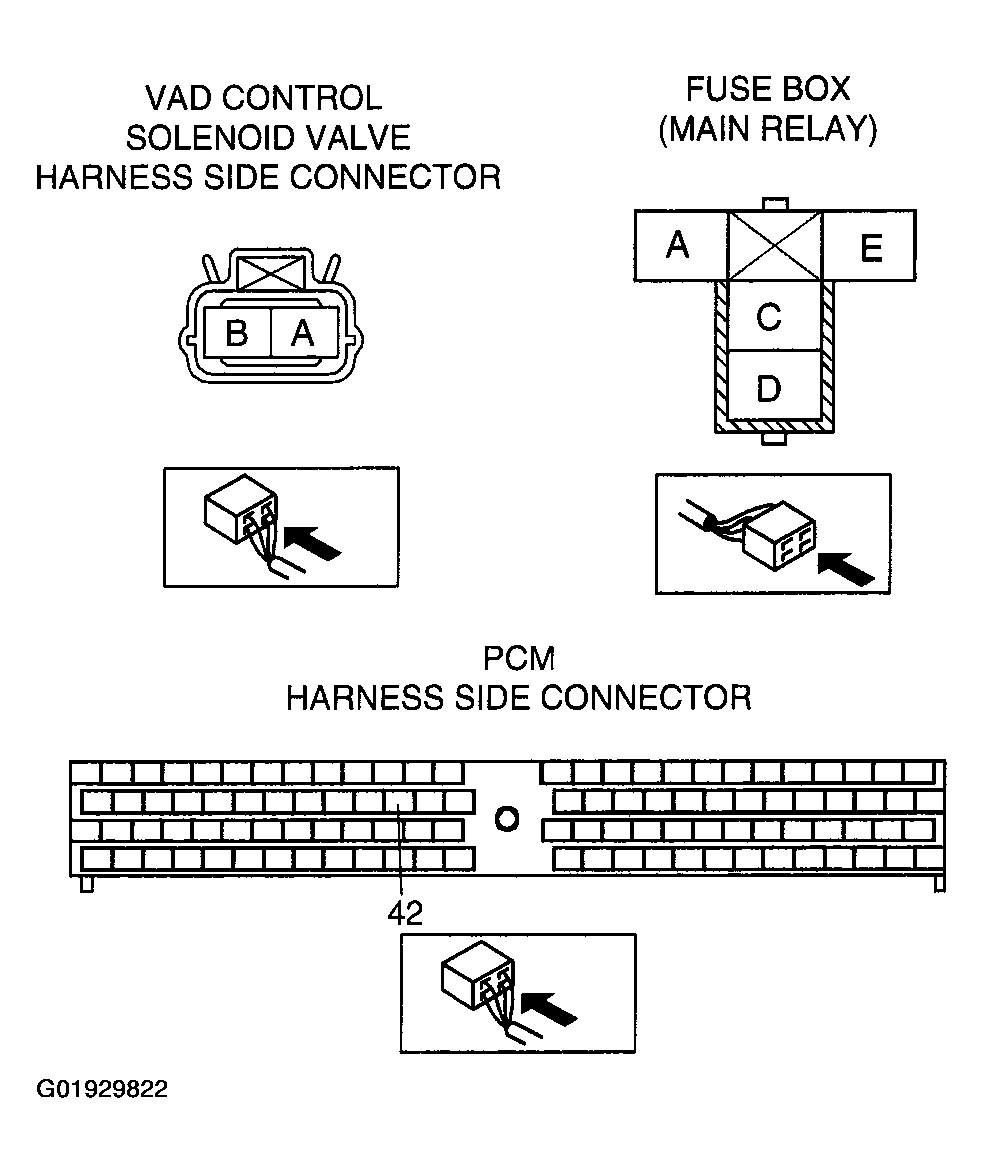

Fig 1: Checking VAD Control Solenoid Valve Circuit
G01929822Courtesy of MAZDA MOTORS CORP.
