Dynamic Chamber Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

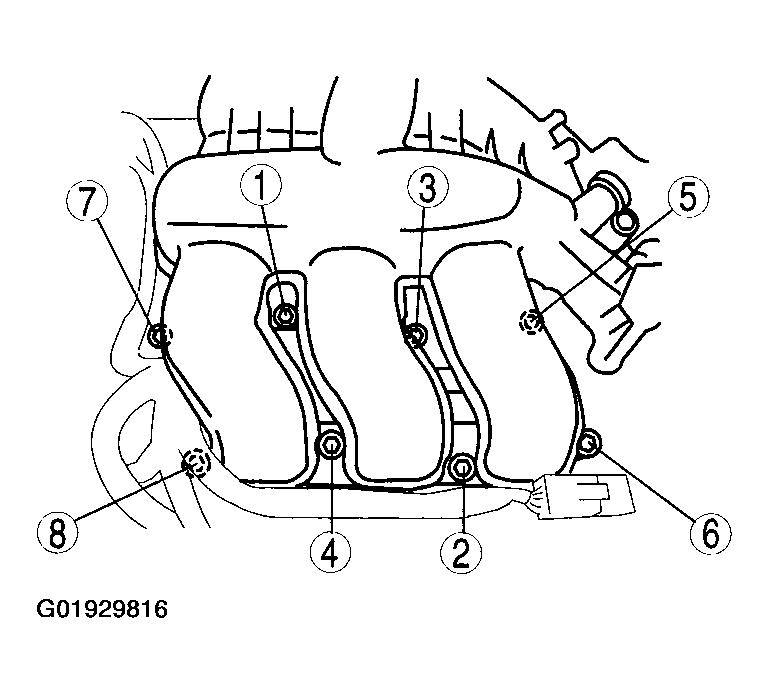

- Tighten the dynamic chamber installation bolts in the order indicated in Fig 1.
Tightening torque
- 8-12 N.m {82-122 kgf.cm, 72-106 in.lbf}
