Intake-Air System Flow Diagram

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

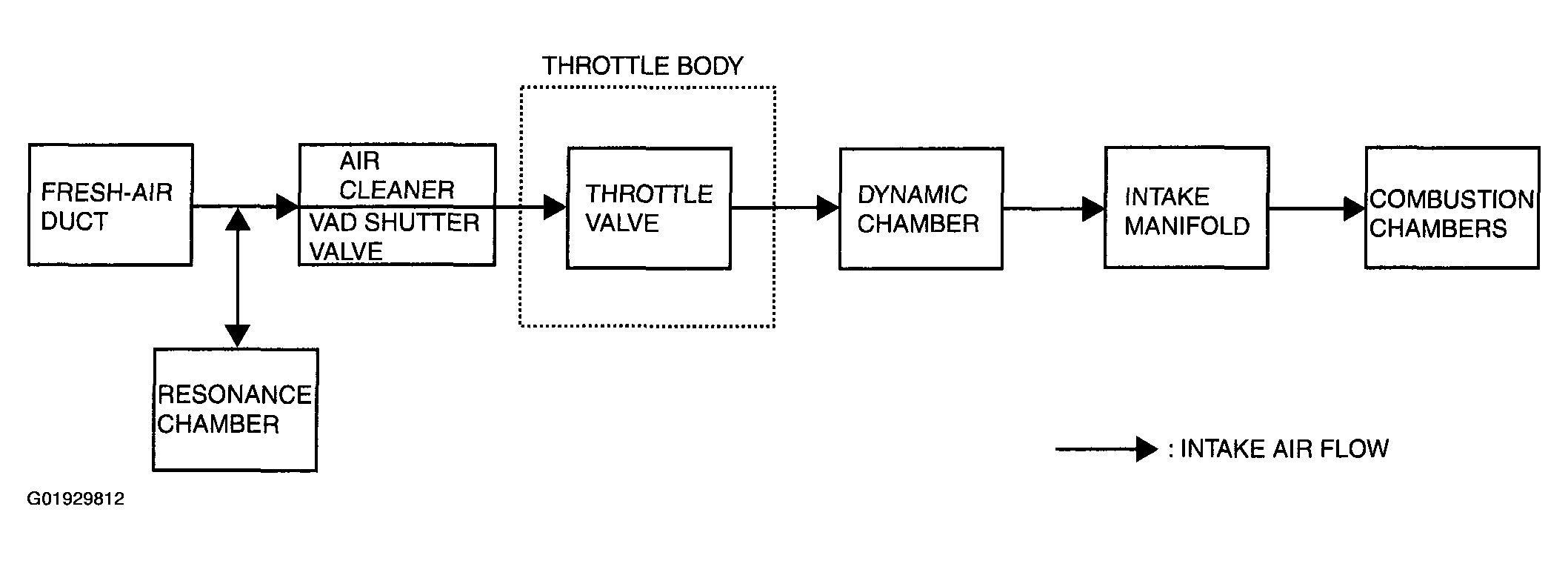

Fig 1: Identifying Intake-Air System Flow Diagram
G01929812Courtesy of MAZDA MOTORS CORP.
