Manifold Gauge Set Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the valves of the manifold gauge.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.

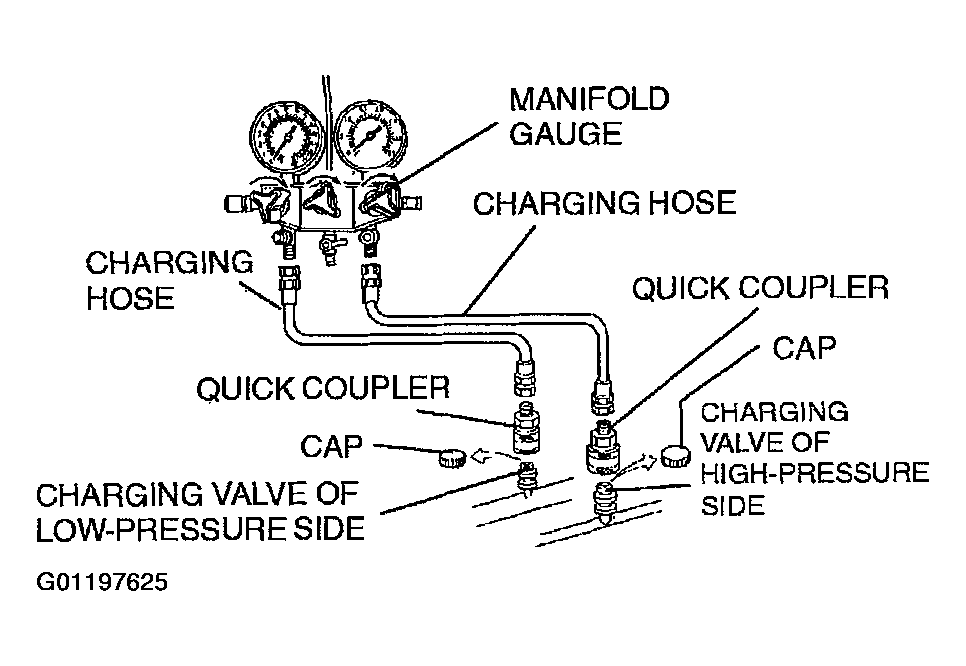

    Fig 1: Connecting Manifold Gauge Set
    G01197625Courtesy of MAZDA MOTORS CORP.
