Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

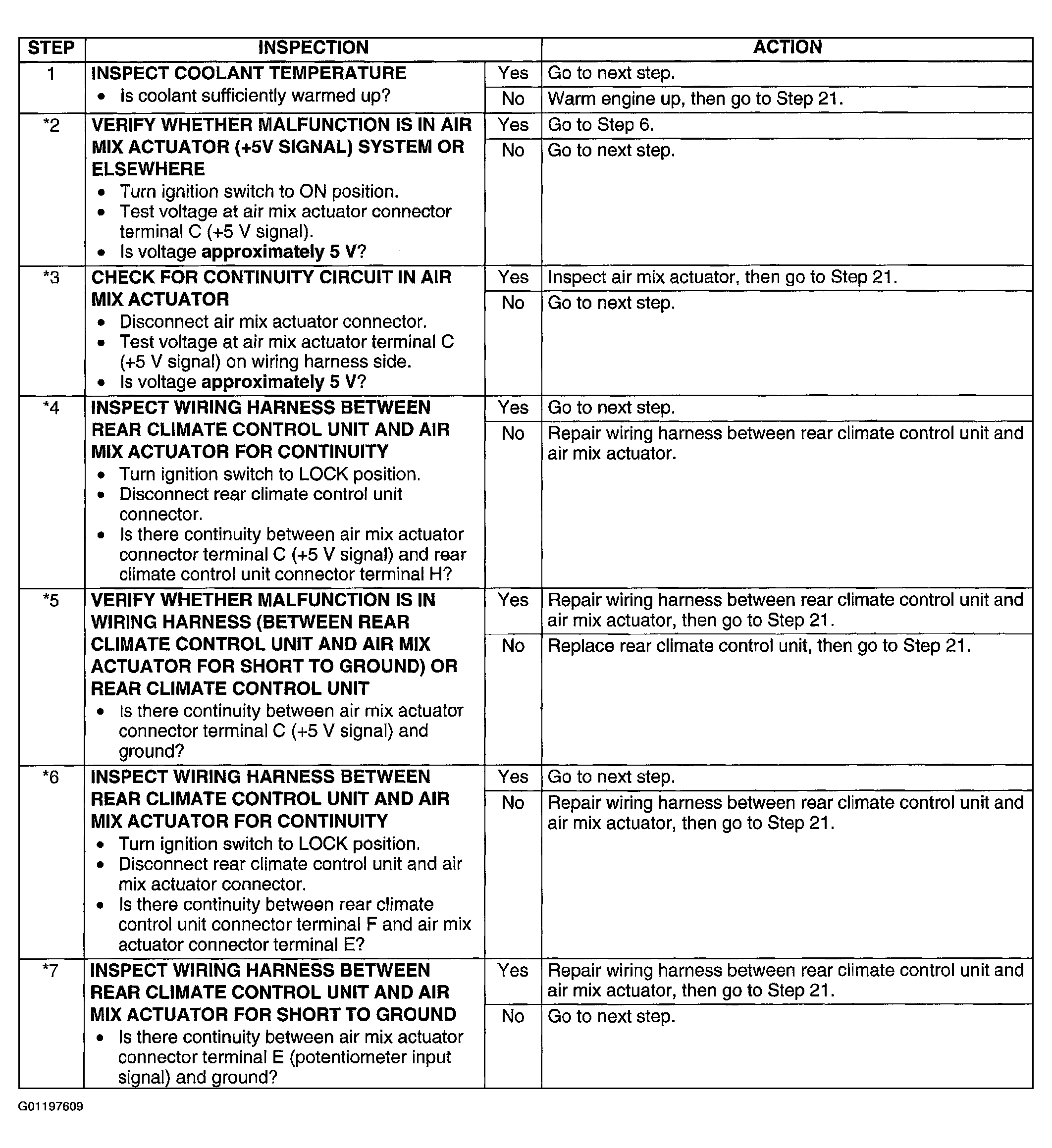

Fig 1: No Temperature Control With Rear Climate Control Unit Diagnostic Procedure (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

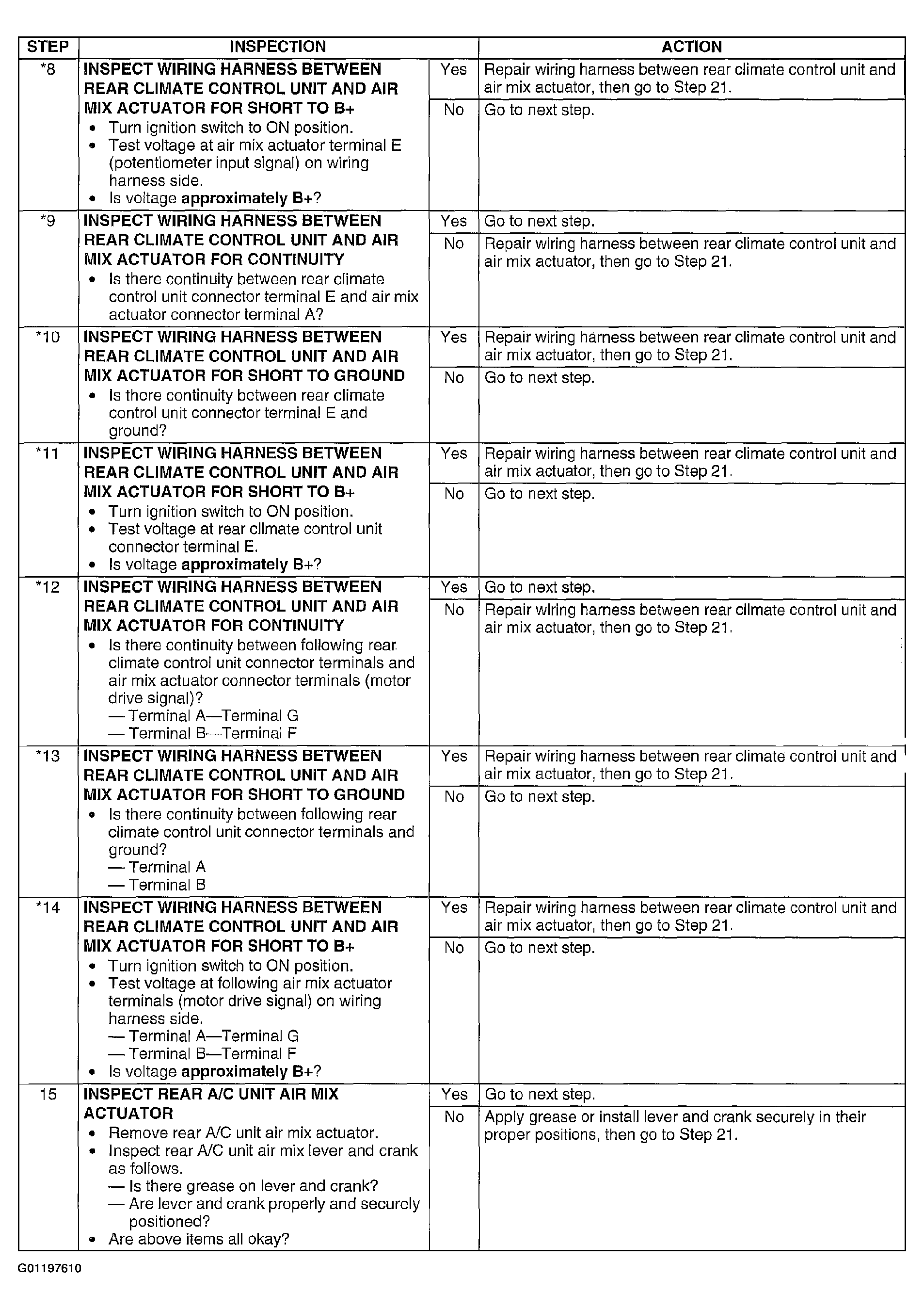

Fig 2: No Temperature Control With Rear Climate Control Unit Diagnostic Procedure (Steps 8-15)

Courtesy of MAZDA MOTORS CORP.

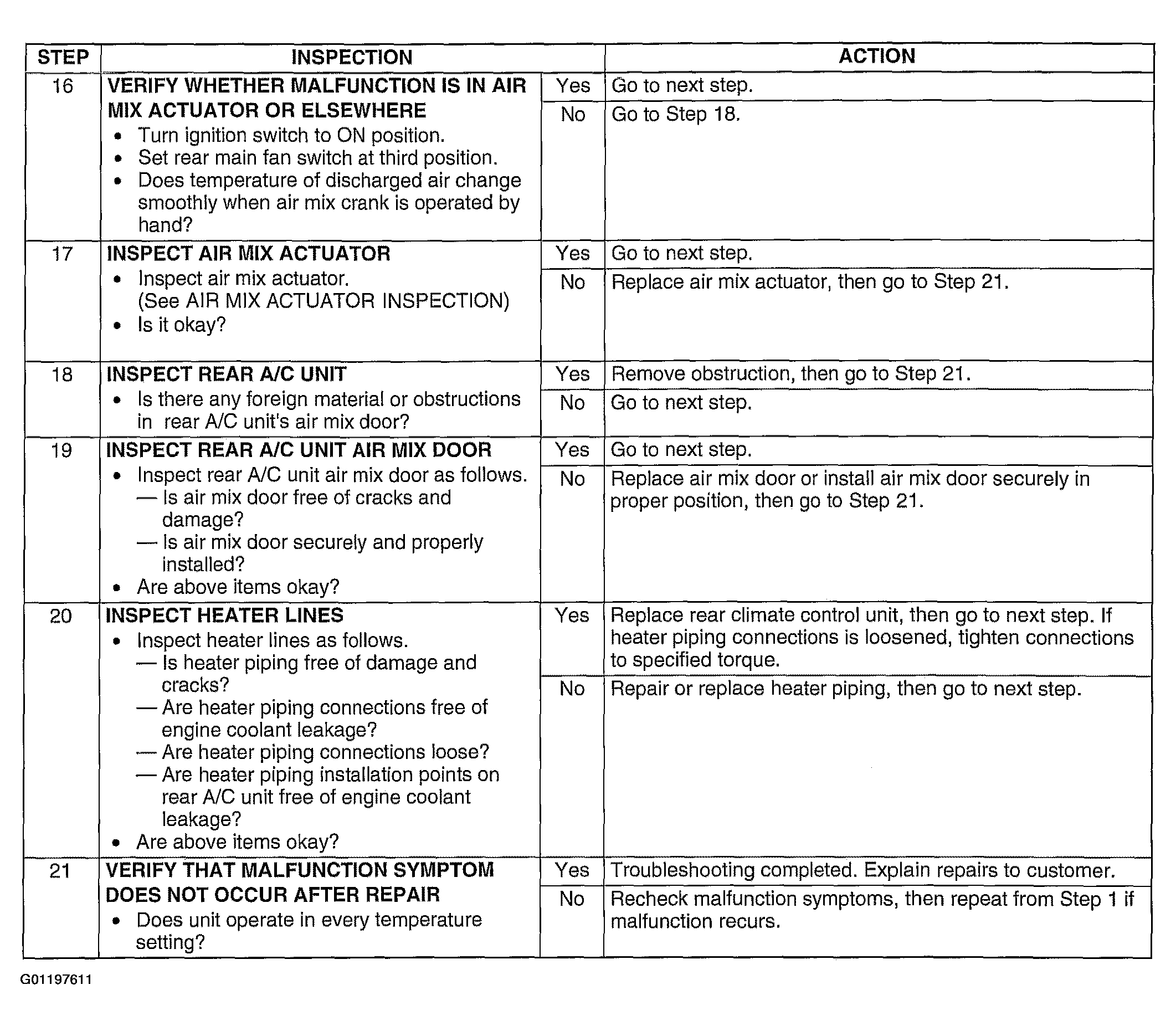

Fig 3: No Temperature Control With Rear Climate Control Unit Diagnostic Procedure (Steps 16-21)

Courtesy of MAZDA MOTORS CORP.
