Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

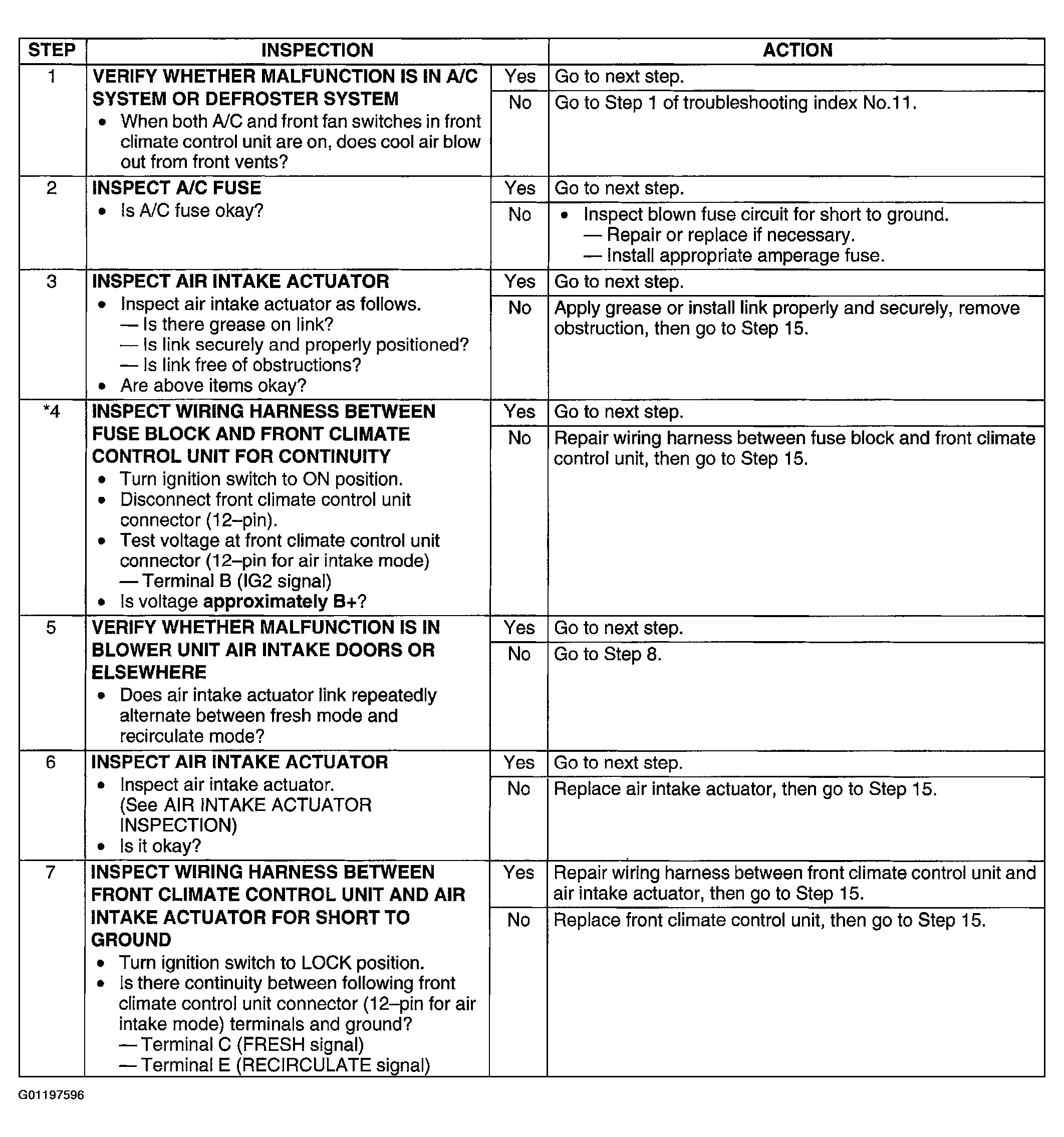

Fig 1: Windshield Fogs Diagnostic Procedure (1 Of 2)
G01197596Courtesy of MAZDA MOTORS CORP.

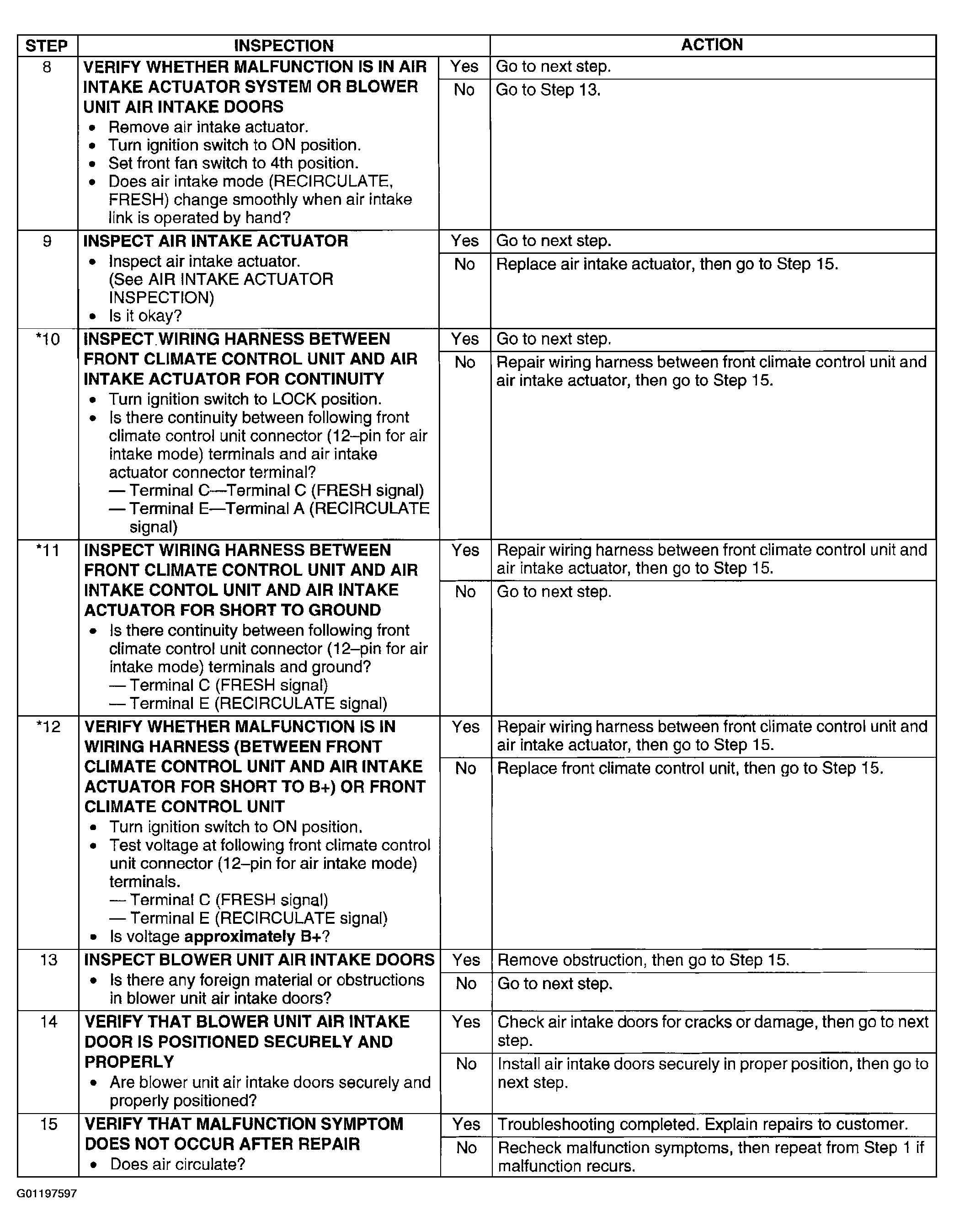

Fig 2: Windshield Fogs Diagnostic Procedure (2 Of 2)
G01197597Courtesy of MAZDA MOTORS CORP.
