Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

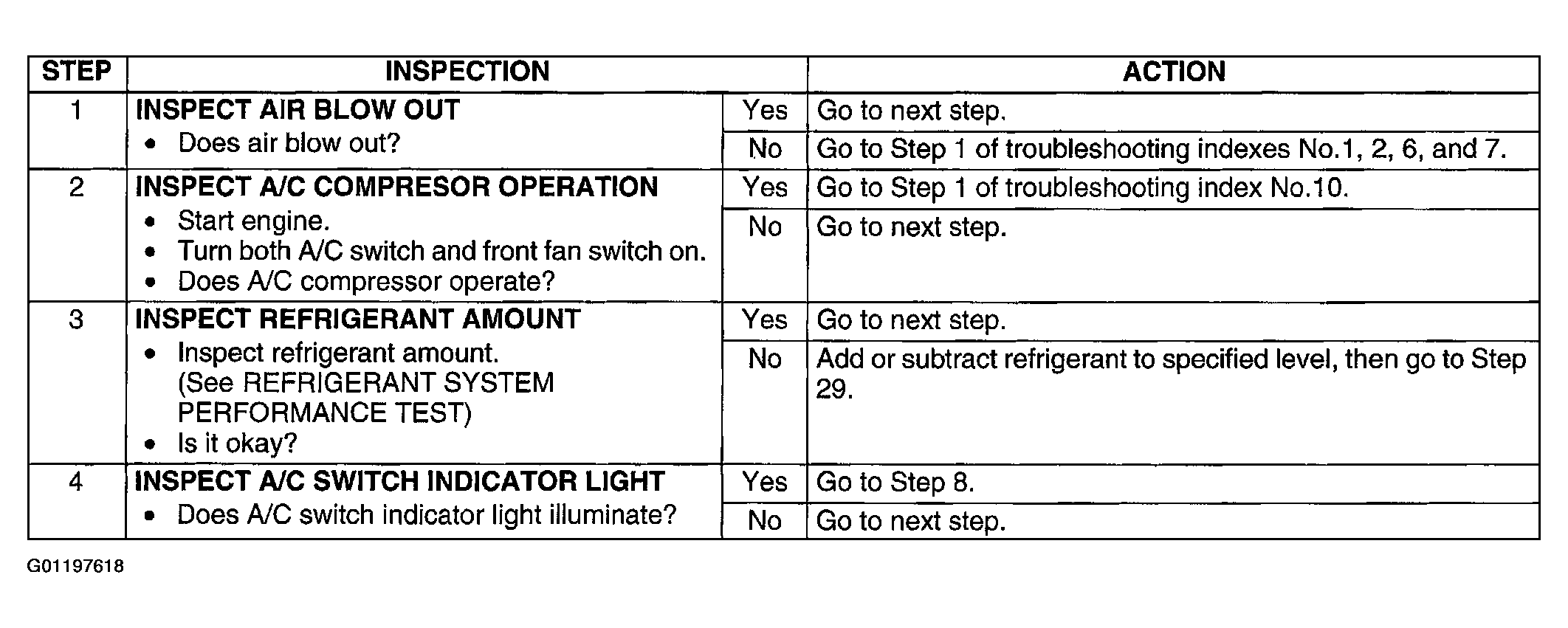

Fig 1: No Cool Air Diagnostic Procedure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

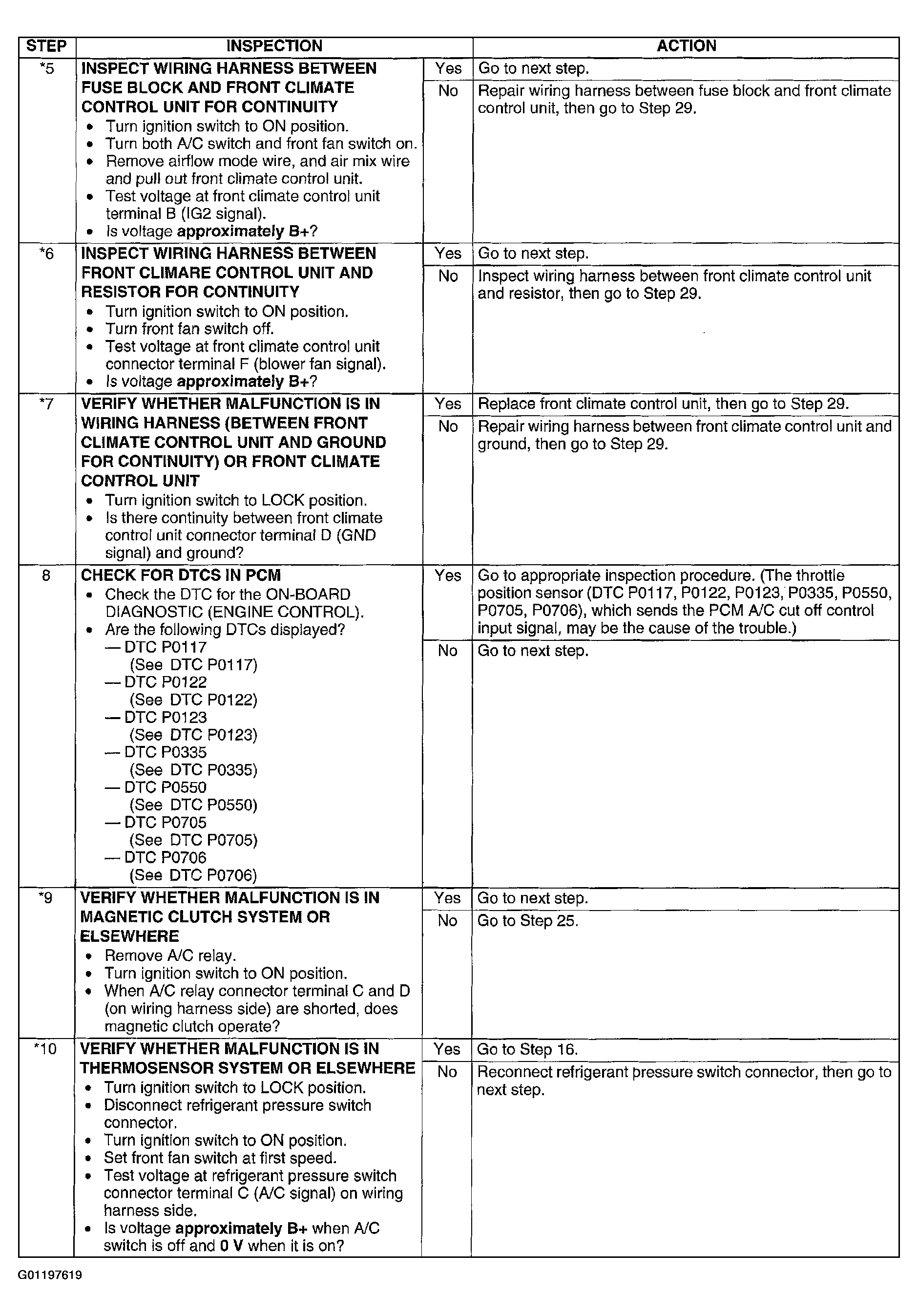

Fig 2: No Cool Air Diagnostic Procedure (Steps 5-10)

Courtesy of MAZDA MOTORS CORP.

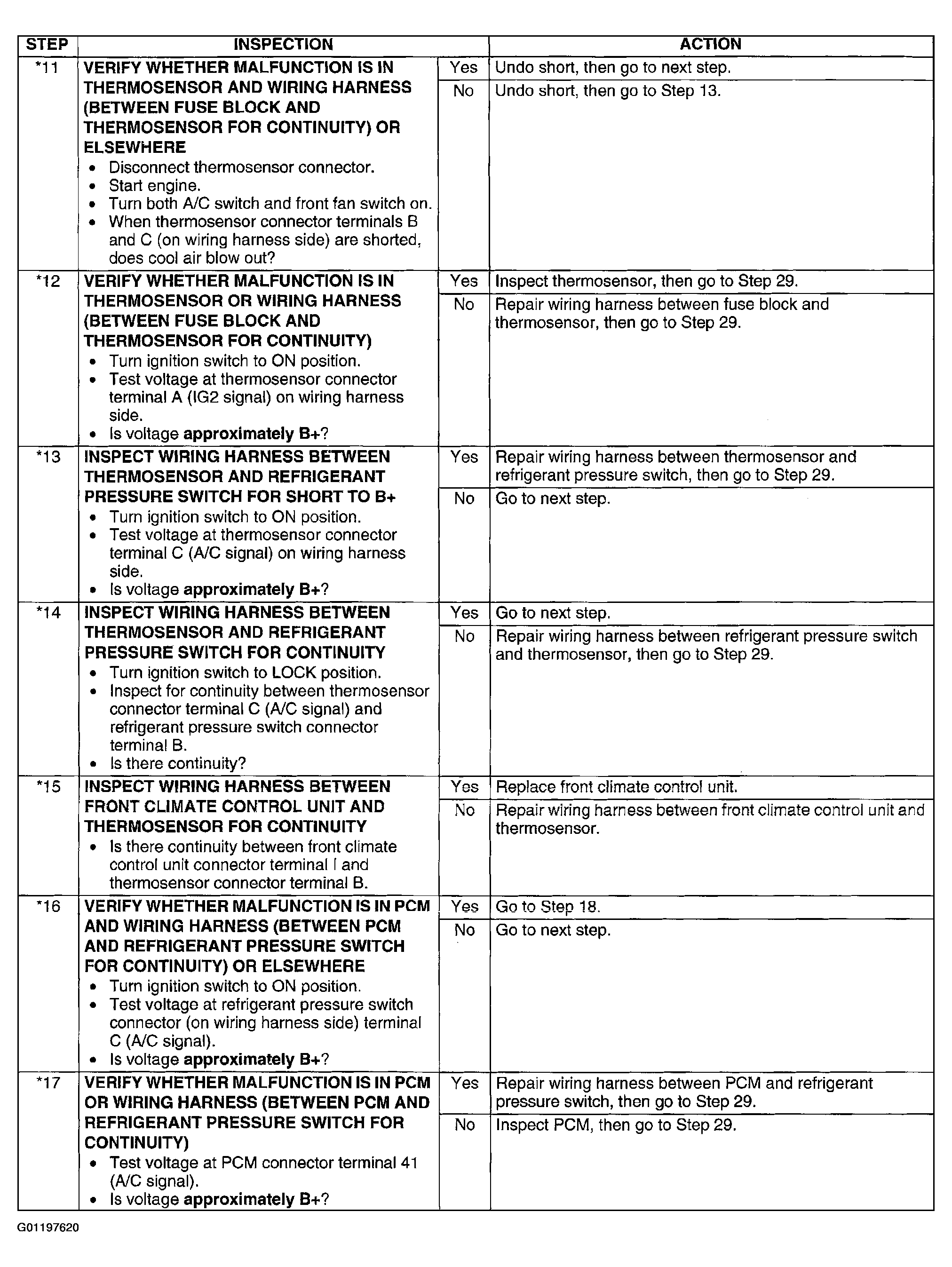

Fig 3: No Cool Air Diagnostic Procedure (Steps 11-17)

Courtesy of MAZDA MOTORS CORP.

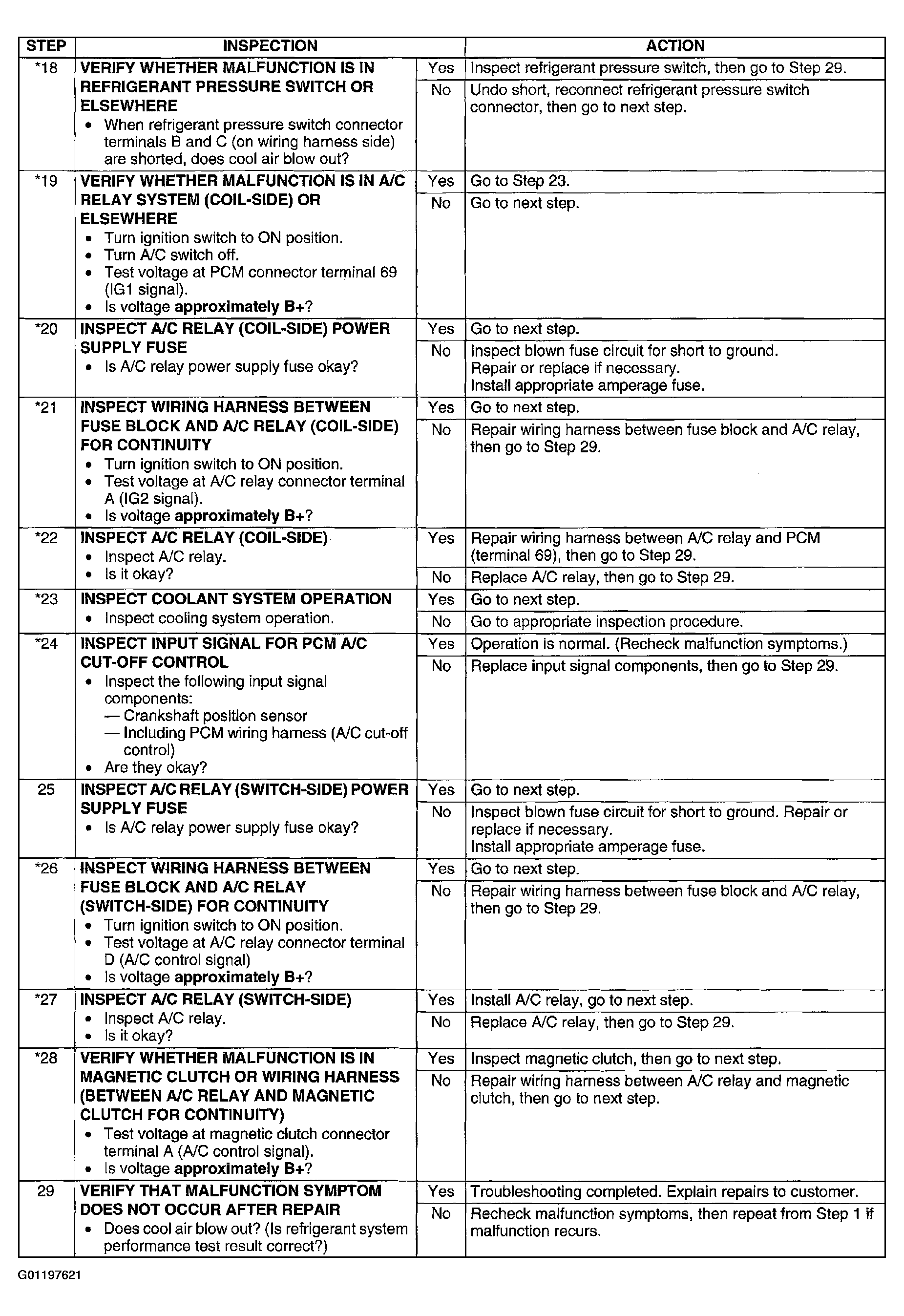

Fig 4: No Cool Air Diagnostic Procedure (Steps 18-29)

Courtesy of MAZDA MOTORS CORP.
