Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

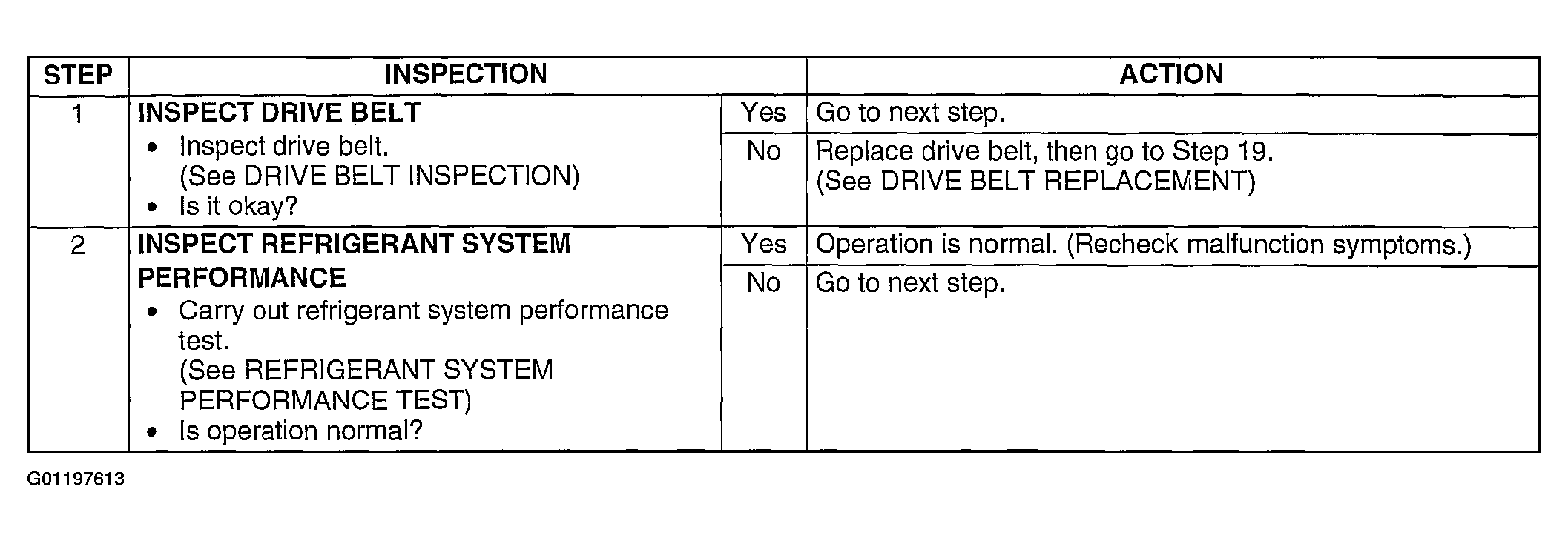

Fig 1: Air From Vent Not Cold Enough Diagnostic Procedure (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

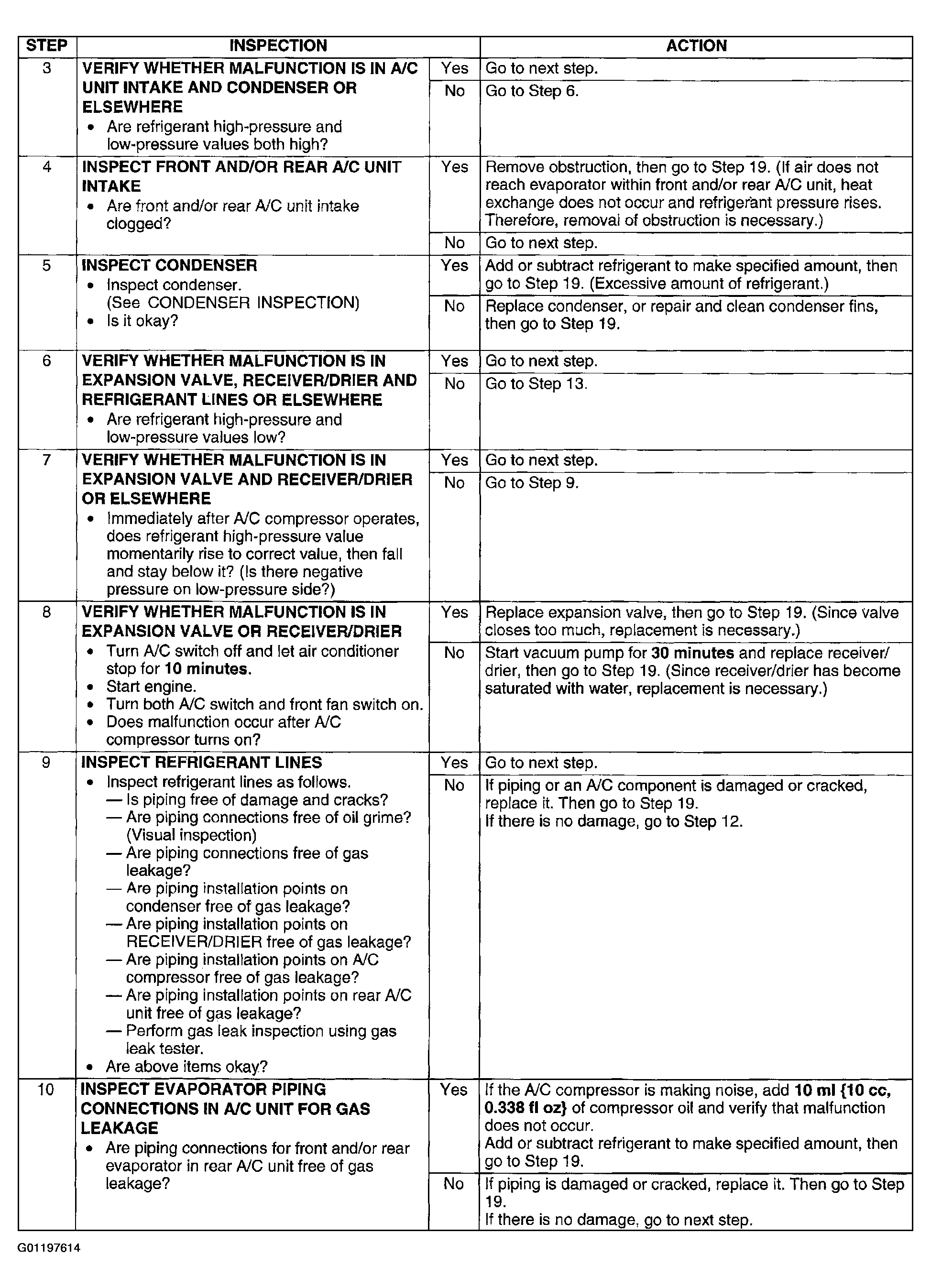

Fig 2: Air From Vent Not Cold Enough Diagnostic Procedure (Steps 3-10)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Air From Vent Not Cold Enough Diagnostic Procedure (Steps 11-17)

Courtesy of MAZDA MOTORS CORP.

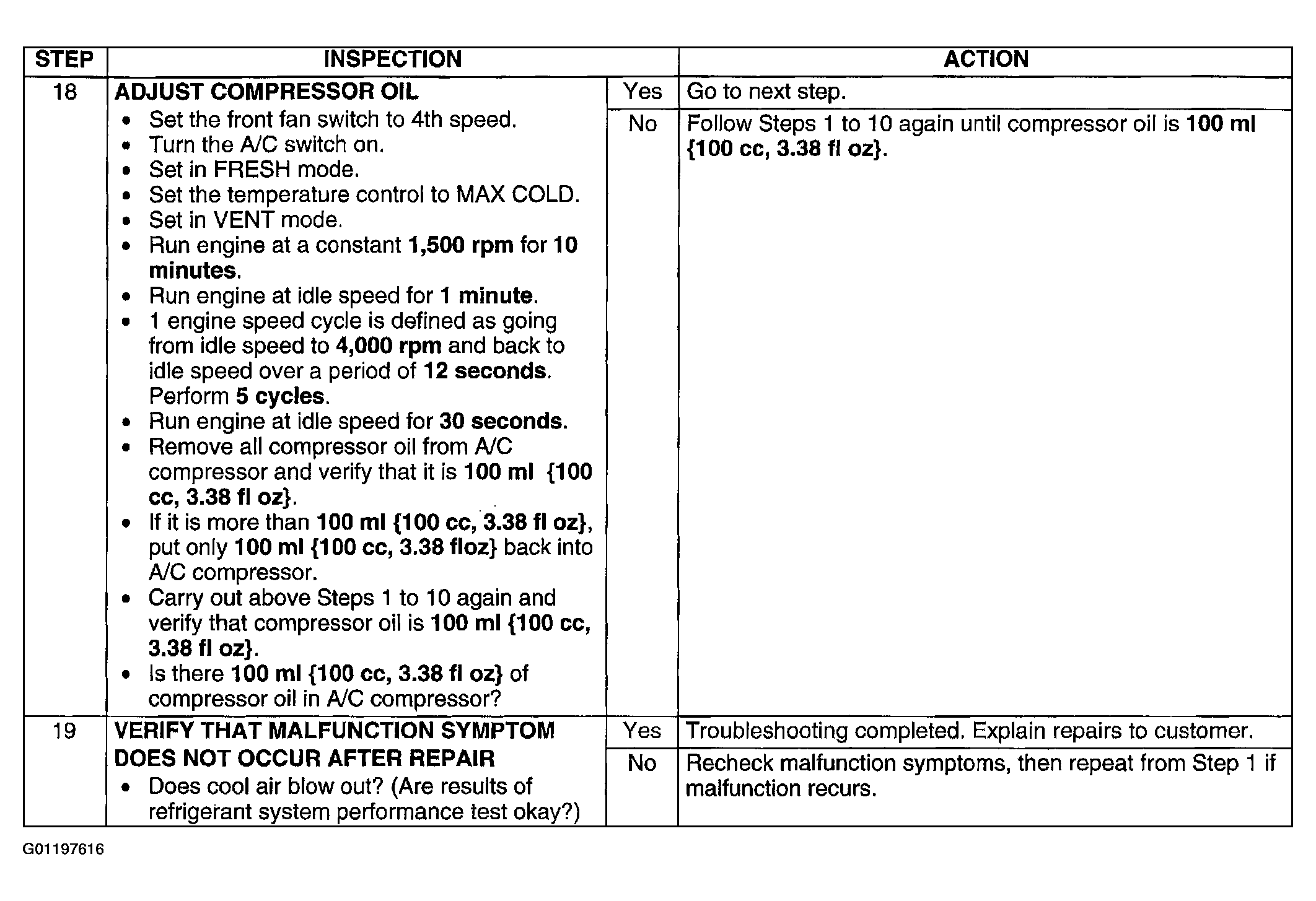

Fig 4: Air From Vent Not Cold Enough Diagnostic Procedure (Steps 18 & 19)

Courtesy of MAZDA MOTORS CORP.
