Rear Heat Duct No. 5

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Fold the third-row seat into rear space.
  3. Remove the passenger-side rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .
  4. Remove the rear heat duct No. 4.
  5. Remove the rear heater grilles.
  6. Turn the front floor covering over.
  7. Remove in the order indicated in the illustration.

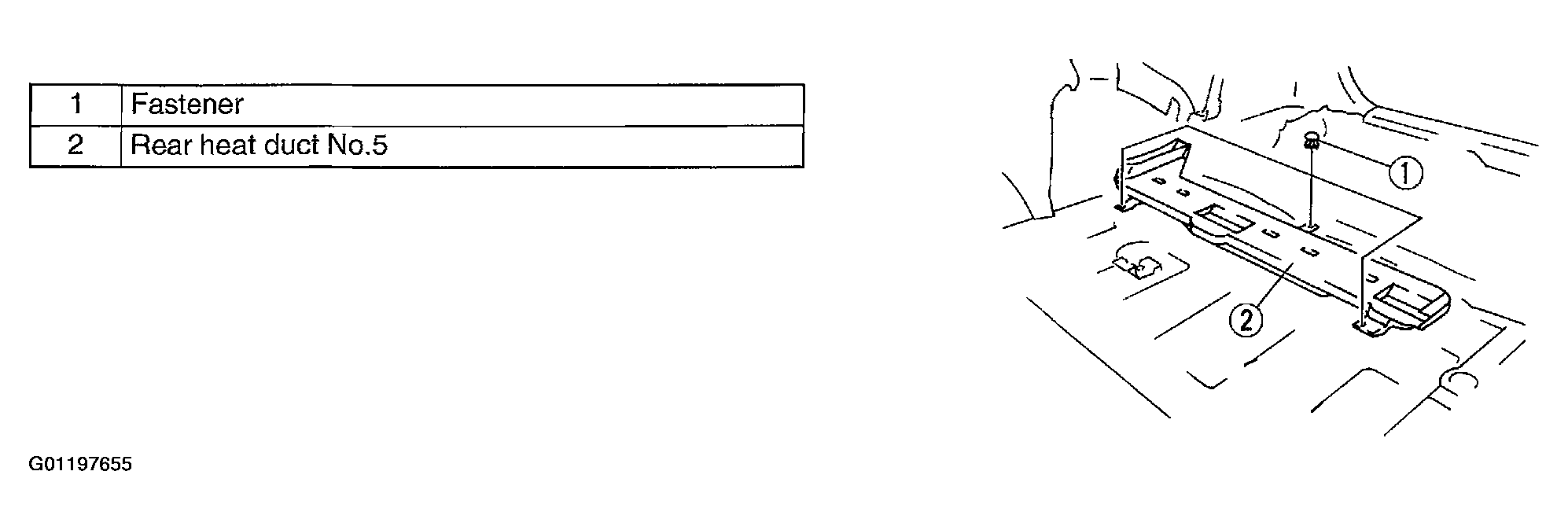

    Fig 1: Removing/Installing Rear Heat Duct No. 5
    G01197655Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
