Rear Heat Duct No. 4

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the third-row seat. See THIRD-ROW SEAT REMOVAL/INSTALLATION .
  3. Remove the passenger-side rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .
  4. Remove the heat duct No. 4.

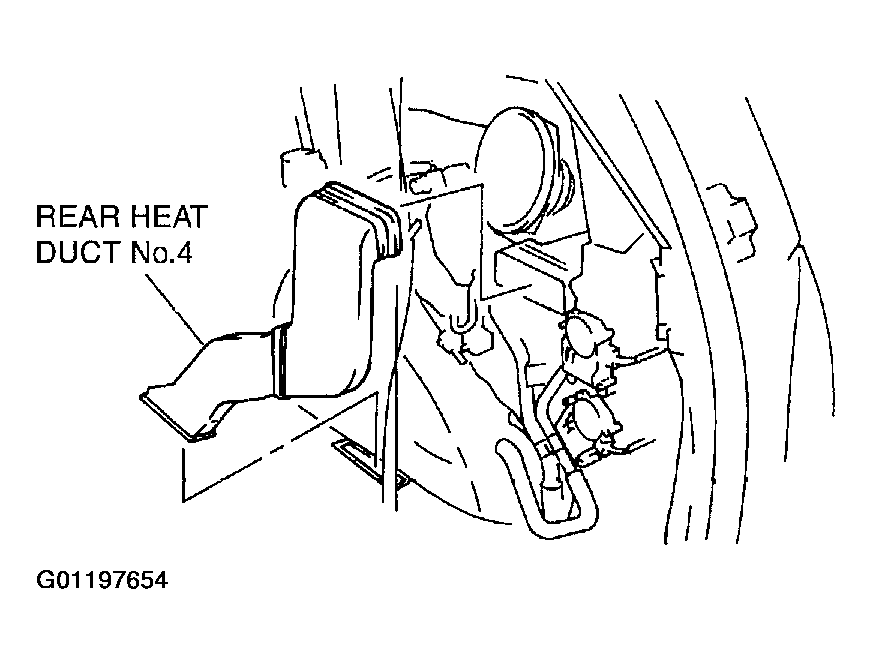

    Fig 1: Removing/Installing Rear Heat Duct No. 4
    G01197654Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
