For Second-Row Seat

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn floor covering over. See FRONT FLOOR COVERING REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the illustration.

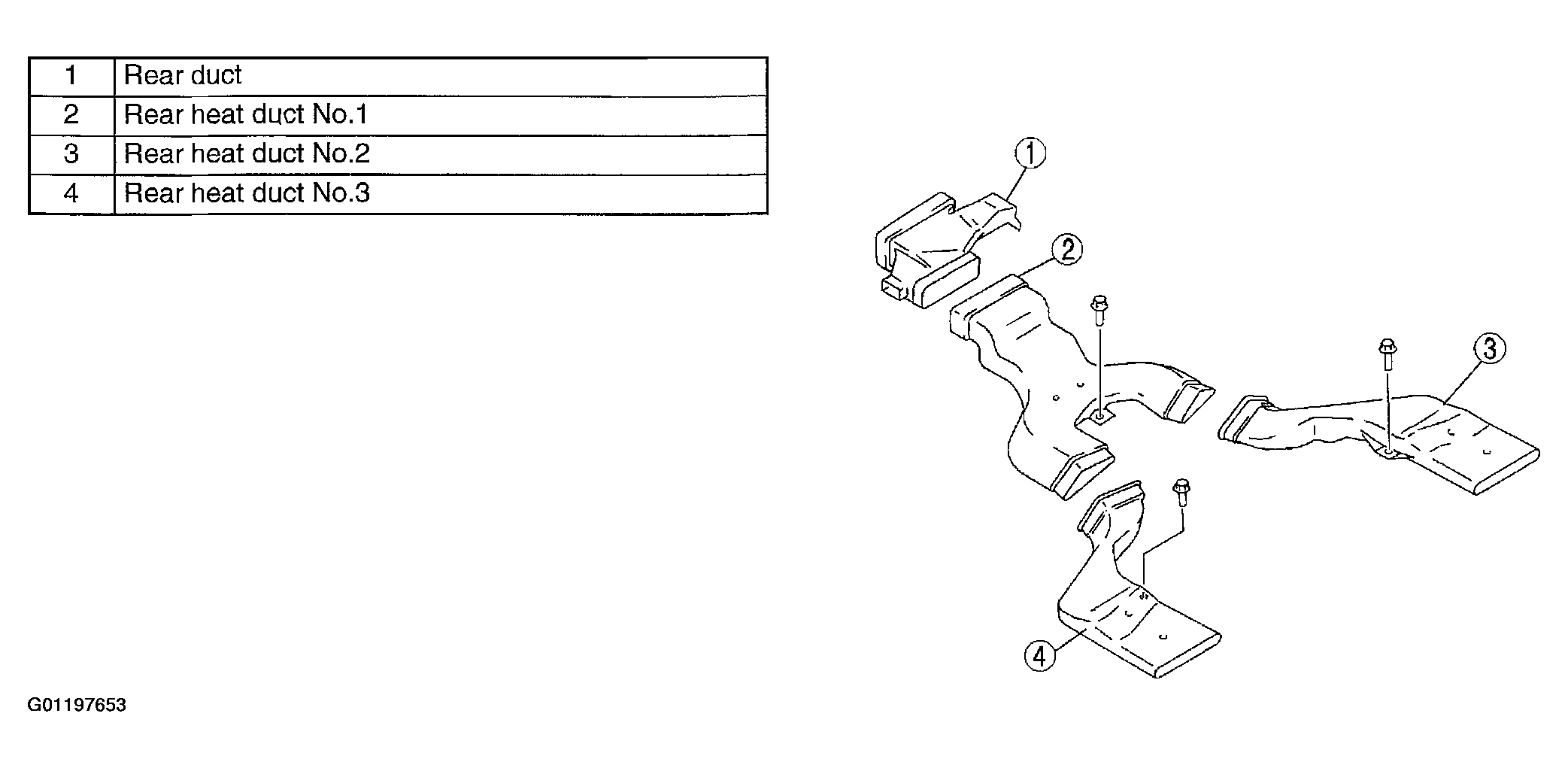

    Fig 1: Removing/Installing Rear Heat Duct Component
    G01197653Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
