Magnetic Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. See A/C COMPRESSOR REMOVAL/INSTALLATION  .
  2. Disassemble in the order indicated in the illustration.

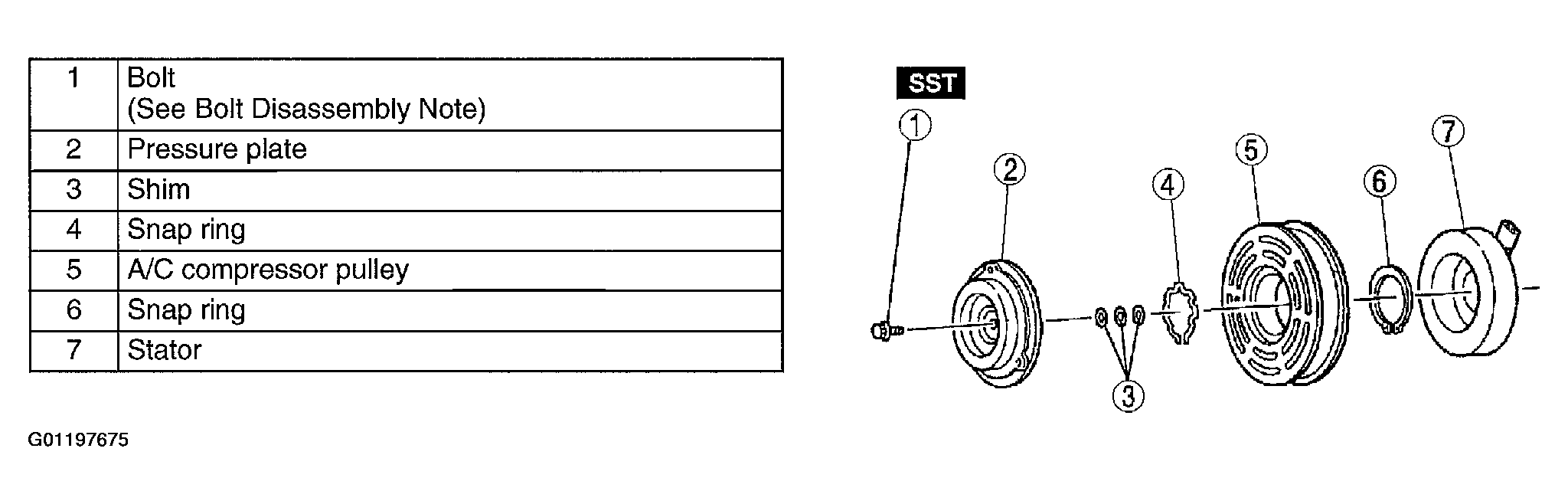

    Fig 1: Disassembling/Assembling Magnetic Clutch
    G01197675Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
  4. Adjust the magnetic clutch clearance. See MAGNETIC CLUTCH ADJUSTMENT  .
