Heater Pipe And Hose Component Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant. See ENGINE COOLANT REPLACEMENT .
Remove in the order indicated in the illustration.

Fig 1: Removing/Installing Heater Pipe And Hose Component
Courtesy of MAZDA MOTORS CORP.

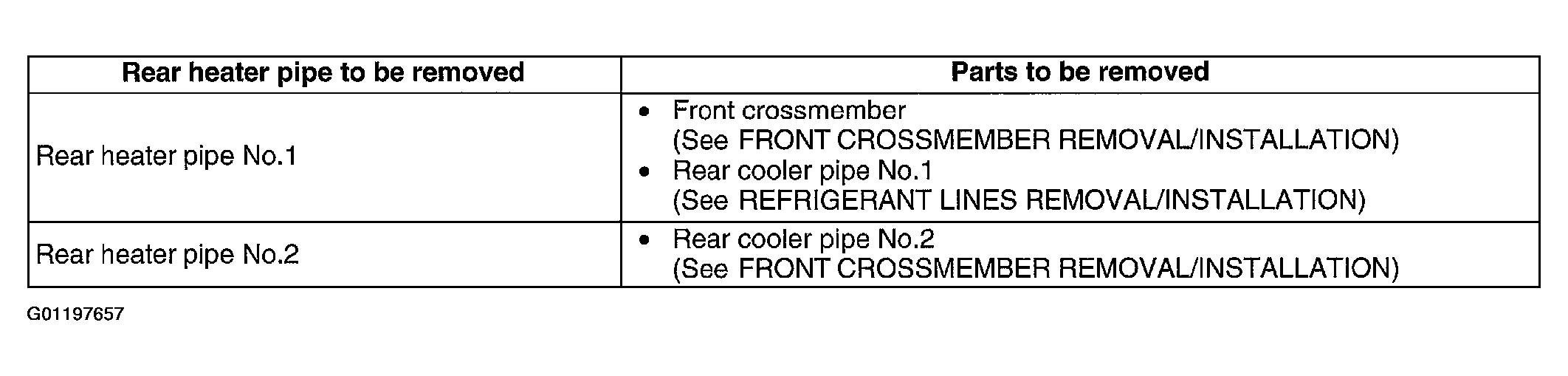

Remove the following parts, depending on rear heater pipe to be removed.
Install in the reverse order of removal.
Refill the engine coolant. See ENGINE COOLANT REPLACEMENT .
