Front Climate Control Unit Removal

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the air mix and airflow mode wires from each wire clamp and link.
  3. Remove the meter hood.
  4. After removing the screws, pull the front climate control unit out and disconnect the connectors.
  5. Remove the front climate control unit.

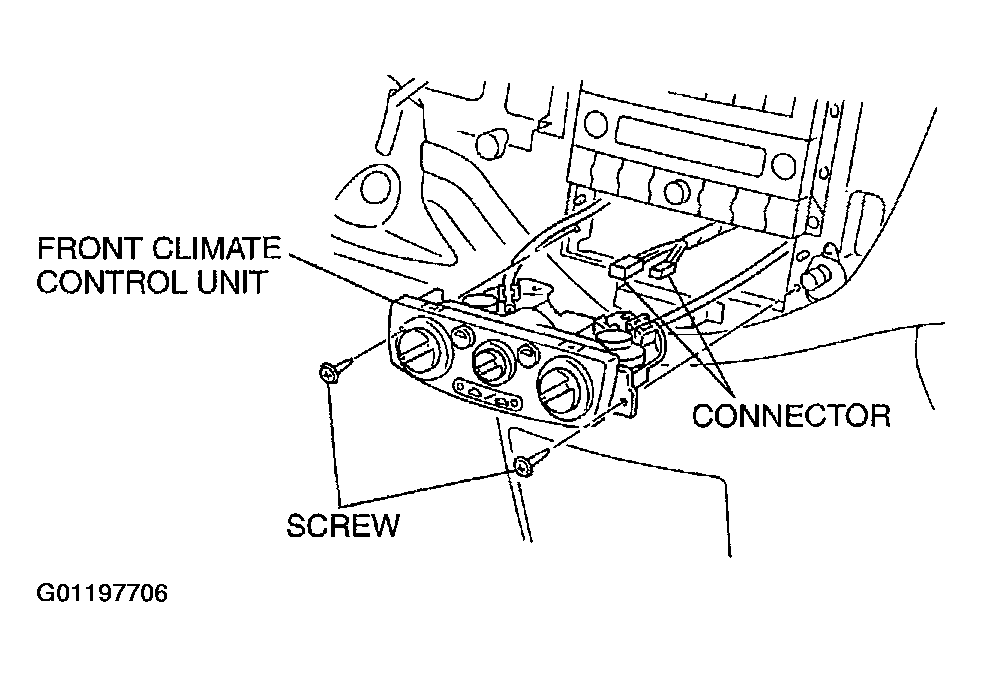

Fig 1: Removing Front Climate Control Unit
G01197706Courtesy of MAZDA MOTORS CORP.
