Front Climate Control Unit Installation
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front climate control unit to the center panel.

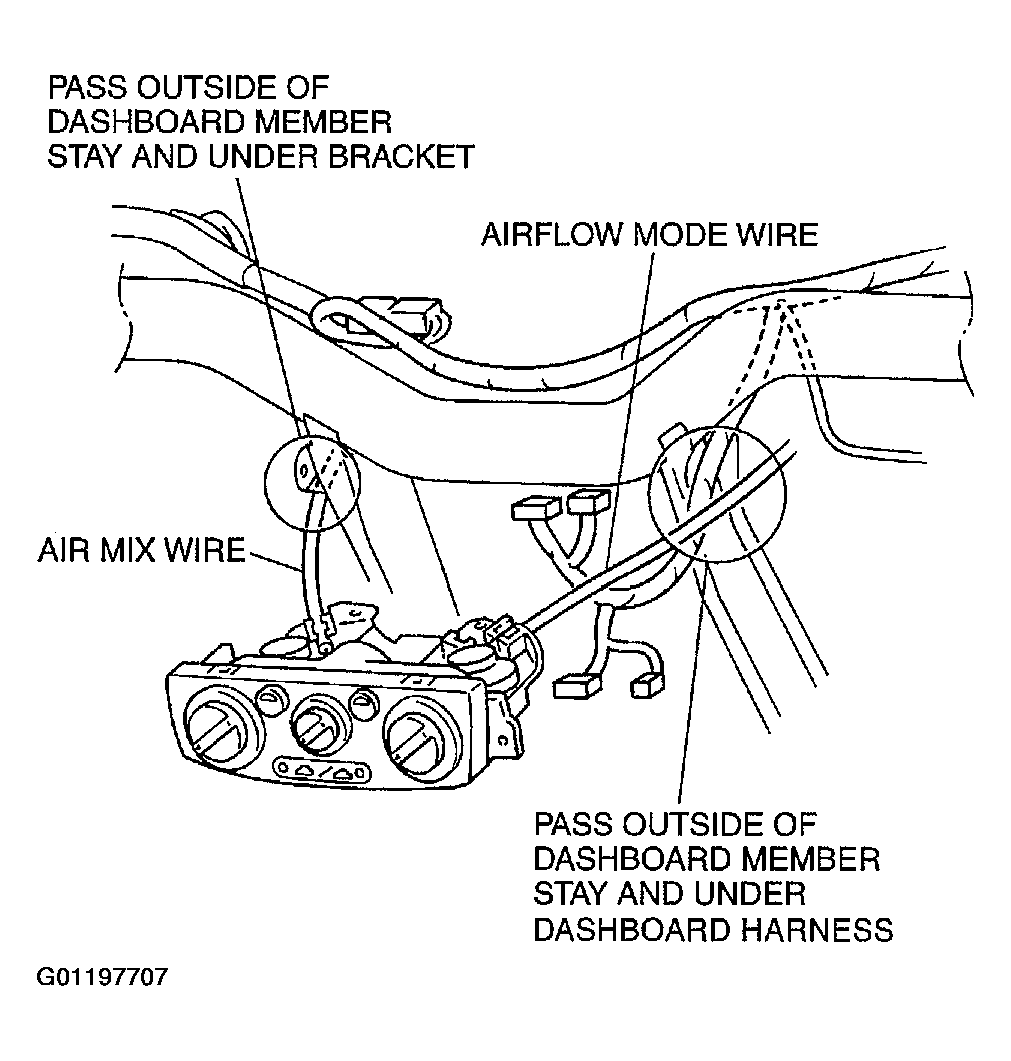

- Pass each wire through the following routes then connect to front A/C unit.
- Connect the front climate control unit connectors.
- Install the meter hood.
- Adjust the front climate control unit wire. See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT .
- Connect the negative battery cable.
