Front Climate Control Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the illustration.

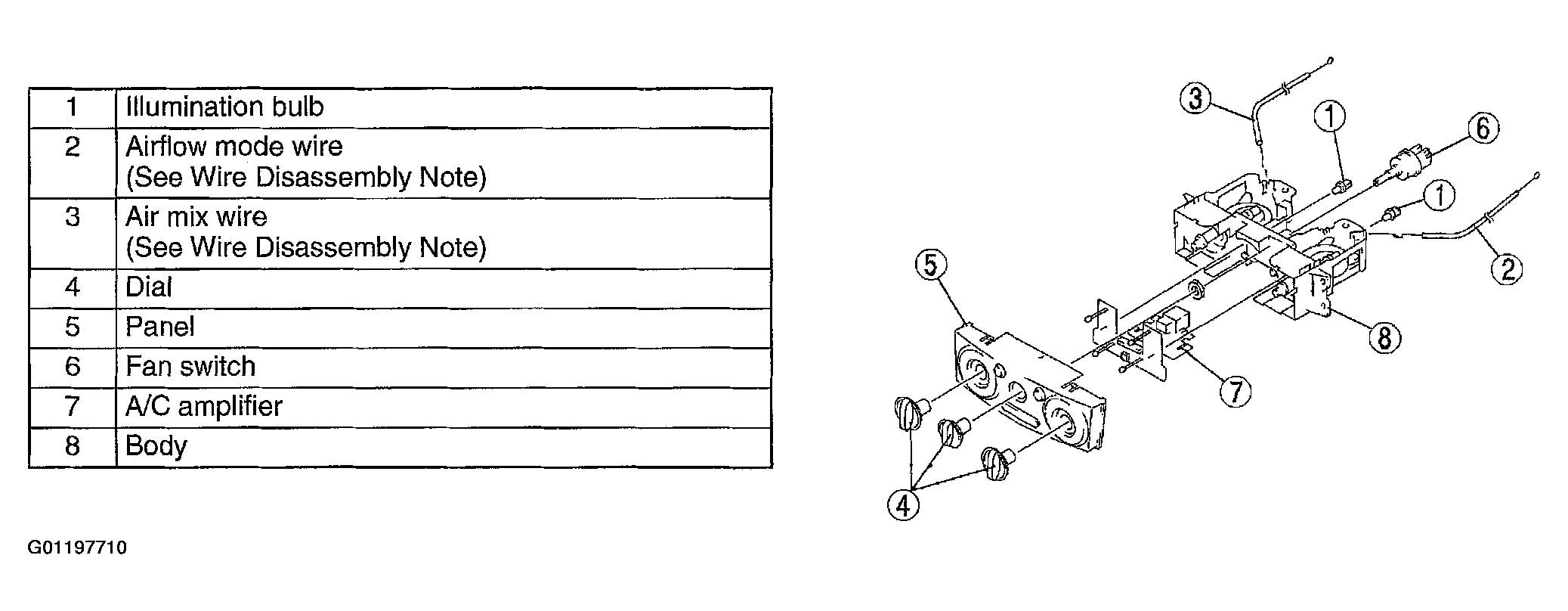

    Fig 1: Disassembling/Assembling Front Climate Control Unit
    G01197710Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
